Rent the EMC Partner ESD system platform with R/C modules for special industry test requirements for electrostatic discharge immunity. ESDguns.com stocks calibrated EMC Partner ESD generator test systems and accessories.
EMC Partner
-
EMC Partner DM6 100pF - 1500ohm RC Module for IEC 61340-3-1 and Mil-STD-750D
The EMC Partner DM6 150pF / 330ohm RC module is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards IEC 61340-3-1, JEDEC 22-A114 and Mil-STD-750D. The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged. EMC Partner ESD3000DM6 Features: Standards Met: IEC 61340-3-1 JEDEC 22-A114 Mil-STD-750D Capacitance/Resistance: 100pF / 1500ohm Voltage range (CD) Contact Discharge: +/- 0.2kV up to 8kV Voltage range (AD) Air Discharge: None
$395.00
-
EMC Partner DM1 150pF - 330ohm Discharge Network for ESD 3000
The EMC Partner DM1 150pF / 330ohm Discharge Network for ESD 3000 meets IEC 61000-4-2 Ed.2: New test method and tolerances for impulse evaluation. The EMC Partner ESD3000 with DM1 fulfills BOTH Ed.1 and Ed.2 EMC Partner ESD3000DM1 Features: Capacitance/Resistance: 150pF / 330ohm Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV Compliance Standards: IEC 61000-4-2, ITU-T K20
$0.00
-
EMC Partner HCP-Auto per ISO 10605 Annex F

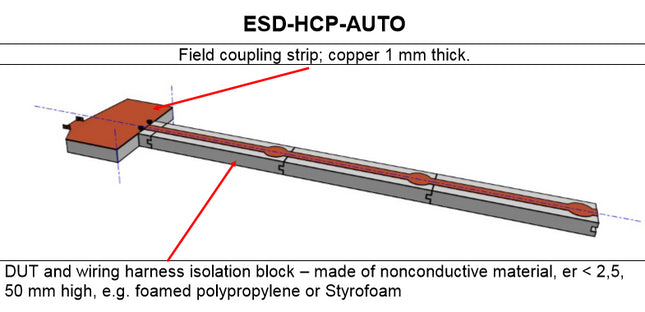

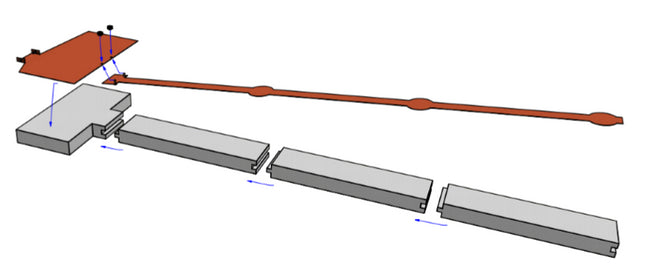

ISO 10605 appendix F describes an additional special horizontal coupling plane as a new approach. This approach is intended to produce more repeatable test results and to better correlate with vehicle level ESD tests and the real word environment in comparison especially to the HCP test specified in IEC 61000-4-2. The EMC Partner HCP-Auto allows for direct and indirect application of ESD discharges to the DUT as per the automotive test standard ISO 10605 for electrostatic immunity, also reference by manufacturer specs by Ford, GM, Toyota and more.
$3,990.00
-
EMC Partner RM32 Relay Module for ESD3000 Pistol
EMC Partner ESD3000RM32 Features: Relay Module required for all 30kV modules for EMC Partner ESD3000 Pistol Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: 0.7ns up to 1ns and < 400ps
$255.00 - $395.00
-
EMC Partner DN1 150pF - 330ohm 30kV Discharge Network for ESD3000
The EMC Partner DN1 150pF / 330ohm Discharge Network for ESD 3000 meets IEC 61000-4-2 Ed.2: New test method and tolerances for impulse evaluation. The EMC Partner ESD3000 with DN1 fulfills BOTH Ed.1 and Ed.2 EMC Partner ESD3000DN1 Features: Capacitance/Resistance: 150pF / 330ohm Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100
$200.00
-
EMC Partner DM7 Discharge Module for IEC 61340-3-2 & JEDEC 22-A115 Machine Model (MM) ESD
The EMC Partner DM7 Discharge Module meets IEC 61340-3-2 & JEDEC 22-A115 Machine Model (MM) ESD immunity compliance standards. It requires use with the EMC Partner ESD 3000 electrostatic discharge generator. EMC Partner ESD3000DM7 Features: Capacitance/Resistance: 200pF / 0 ohm Voltage range (CD) Contact Discharge: +/- 0.08 kV up to 2.5 kV Voltage range (AD) Air Discharge: no AD Compliance Standards: IEC 61340-3-2 & JEDEC 22-A115 Machine Model (MM) ESD
$217.00 - $295.00
-
EMC Partner ESD3000DM5 RC Module Set for RTCA-DO-160 & EUROCAE ED-14D
The EMC Partner ESD3000DM5 150pF / 330ohm RC module is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets requirements per RTCA/DO-160 and EURO CAE ED-14D The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged. EMC Partner ESD3000DM6 Features: Standards Met: RTCA/DO-160 EUROCAE ED-14D Capacitance/Resistance: 150pF / 330ohm Voltage range (CD) Contact Discharge: None Voltage range (AD) Air Discharge: +/- 1kV up to 30kV
$39.00 - $299.00
-
EMC Partner ESD3000DN4 500 pF - 5000 Ohm Network for Testing Explosive Devices to MIL-STD-331

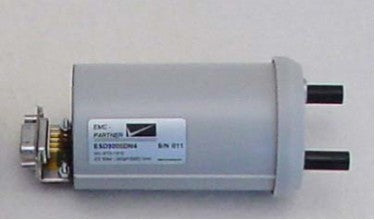

EMC Partner ESD3000DN4 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards for testing explosive devices. EMC Partner ESD3000DN4 Features: Capacitance/Resistance: 500pF / 5000ohm Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: MIL-STD-331, STANAG 4239, ISO 14304, MIL-STD-1512 EMC Partner ESD3000DN4 Package Includes: DN4 500pF/5000Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diamete 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN4 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$395.00
-
EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance
The EMC Partner DM4 Network for Mil-STD-464, Mil-STD-883 & GR78-CORE ESD Compliance is required for use with the for EMC Partner ESD 3000 Pistol. The plug-in module meets human body model compliance standards Mil-STD-464, Mil-STD-883, and GR78-CORE. The discharge modules (DM) contain the high voltage source and the impulse network, making them optimized for the specific application and standard. The RC modules can be easily interchanged. EMC Partner ESD3000DM4 Features: Standards Met: Mil-STD-464 MIL-STD-883 GR78-CORE Capacitance/Resistance: 100pF / 1500ohm Voltage range (CD) Contact Discharge: +/- 0.2kV up to 10kV Voltage range (AD) Air Discharge: +/- 0.2kV up to 16kV
$295.00 - $395.00
-
EMC Partner ESD3000DN32-IND1 150 pF - 150 Ohm RC Module
EMC Partner ESD3000DN32-IND1 150 pF / 150 Ohm RC Module EMC Partner ESD3000DN32-IND1 Features: Meets ABD0100.1.2, IEC 801-2 Capacitance/Resistance: 150pF / 150ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-IND1 Package Includes: ESD3000DN32-IND1 RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN32-IND1 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$2,950.00
-
EMC Partner ESD3000DN32-MIL2 450 pF - 150 Ohm Network for Military ESD Testing
EMC Partner ESD3000DN32-MIL2 450 pF / 150 Ohm Network for Military ESD Testing EMC Partner ESD3000DN32-MIL2 Features: Capacitance/Resistance: 450pF / 150ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL2 Package Includes: ESD3000DN32-MIL2 RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00 - $3,975.00
-
EMC Partner ESD3000DN32-MIL3 500 pF - 0 Ohm Network for MIL-STD-1576
EMC Partner ESD3000DN32-MIL3 500 pF / 0 Ohm Network is used to meet MIL-STD-1576. EMC Partner ESD3000DN32-MIL3 Features: Capacitance/Resistance: 500pF / 0 ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Compliance Standards: MIL-STD-1576 Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL3 Package Includes: ESD3000DN32-MIL3 500pF/0Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00 - $3,975.00
