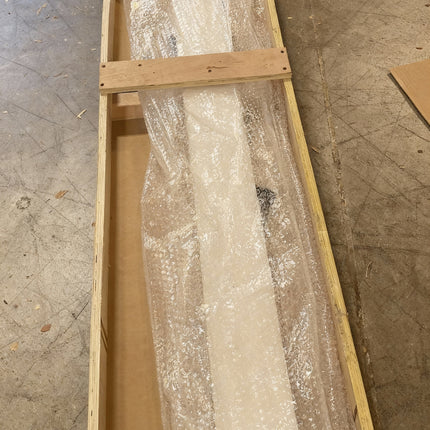

EMC Partner HCP-Auto per ISO 10605 Annex F

    Description

    ISO 10605 appendix F describes an additional special horizontal coupling plane as a new approach. This approach is intended to produce more repeatable test results and to better correlate with vehicle level ESD tests and the real word environment in comparison especially to the HCP test specified in IEC 61000-4-2.

    The EMC Partner HCP-Auto allows for direct and indirect application of ESD discharges to the DUT as per the automotive test standard ISO 10605 for electrostatic immunity, also reference by manufacturer specs by Ford, GM, Toyota and more.

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $3,990.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Features

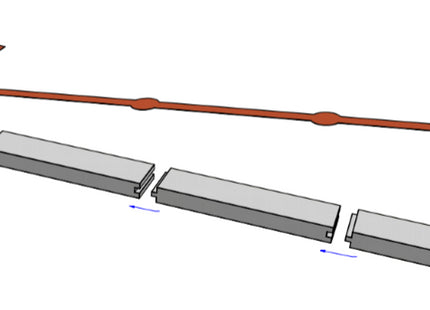

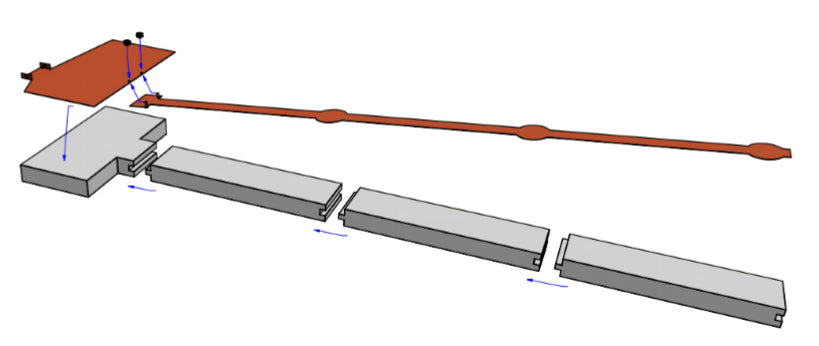

      • Compliant to Annex F of ISO 10605
      • 1500 mm Length
      • Includes

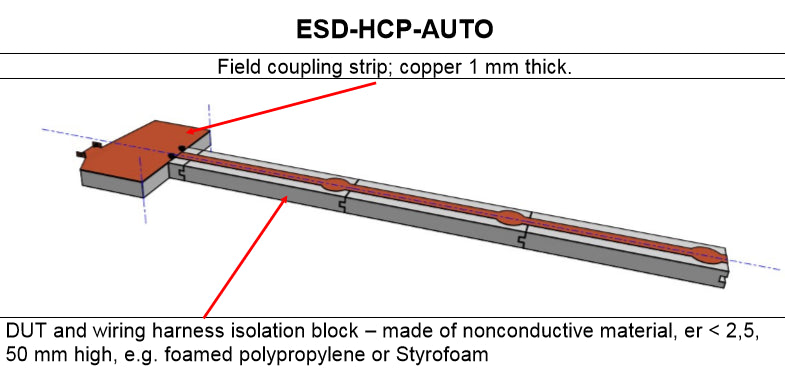

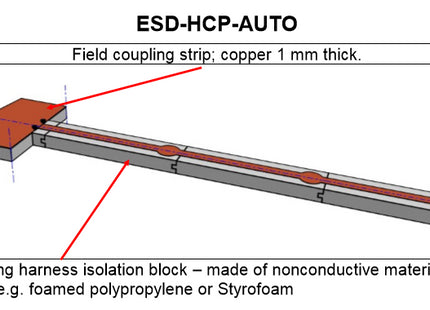

        • Copper plane 1mm thick
        • Insulation block 50mm thick
        • Cable with 470k Ohm resistors
