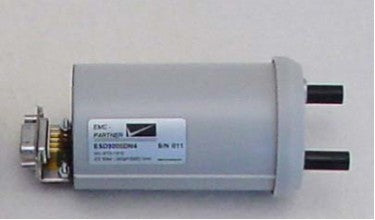

EMC Partner ESD3000DN4 500 pF - 5000 Ohm Network for Testing Explosive Devices to MIL-STD-331

    Description

    EMC Partner ESD3000DN4 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards for testing explosive devices.

    EMC Partner ESD3000DN4 Features:

    • Capacitance/Resistance: 500pF / 5000ohm
    • Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV
    • Voltage range (AD) Air Discharge: +/- 1kV up to 30kV
    • Compliance Standards: MIL-STD-331, STANAG 4239, ISO 14304, MIL-STD-1512

    EMC Partner ESD3000DN4 Package Includes:

    • DN4 500pF/5000Ohm RC module
    • Air Discharge Tip
    • Contact Tip
    • Air Discharge Electrode Diamete 30mm
    • Permanent Magnet
    • CD Manual
    • Calibration Report

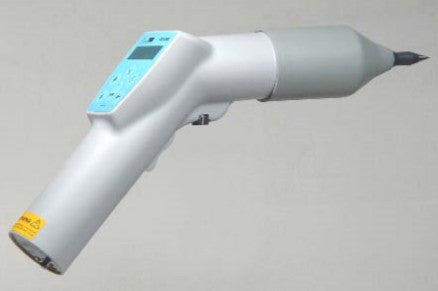

    *The ESD3000DN4 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $395.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Features

      • Capacitance/Resistance: 500pF / 5000ohm
      • Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV
      • Voltage range (AD) Air Discharge: +/- 1kV up to 30kV
      • Compliance Standards: MIL-STD-331, STANAG 4239, ISO 14304, MIL-STD-1512

      Ask & Learn

      Previous answers and questions posted below

      Learn by asking questions, practicing, and getting guidance

      Ask Now

      Description

      EMC Partner ESD3000DN4 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards for testing explosive devices.

      EMC Partner ESD3000DN4 Features:

      • Capacitance/Resistance: 500pF / 5000ohm
      • Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV
      • Voltage range (AD) Air Discharge: +/- 1kV up to 30kV
      • Compliance Standards: MIL-STD-331, STANAG 4239, ISO 14304, MIL-STD-1512

      EMC Partner ESD3000DN4 Package Includes:

      • DN4 500pF/5000Ohm RC module
      • Air Discharge Tip
      • Contact Tip
      • Air Discharge Electrode Diamete 30mm
      • Permanent Magnet
      • CD Manual
      • Calibration Report

      *The ESD3000DN4 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
