Rent the EMC Partner ESD3000 30 kV ESD Simulator System for Mil-STD-331

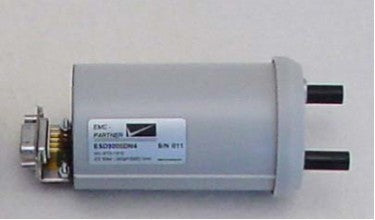

EMC Partner ESD3000DN32-MIL3 500 pF / 0 Ohm Network for MIL-STD-1576

EMC Partner ESD3000DN32-MIL3 500 pF - 0 Ohm Network for MIL-STD-1576

SKU:

: In stock

$0.00

  • Capacitance/Resistance: 500pF / 0ohm ±10%
  • Voltage range (CD) Contact Discharge: 2 - 30kV
  • Compliance Standards: MIL-STD-1576
  • Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

EMC Partner ESD3000DN32-MIL3 500 pF / 0 Ohm Network is used to meet MIL-STD-1576.

EMC Partner ESD3000DN32-MIL3 Features:

  • Capacitance/Resistance: 500pF / 0 ohm ±10%
  • Voltage range (CD) Contact Discharge: 2 - 30kV
  • Compliance Standards: MIL-STD-1576
  • Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun

EMC Partner ESD3000DN32-MIL3 Package Includes:

  • ESD3000DN32-MIL3 500pF/0Ohm RC module
  • Air Discharge Tip
  • Contact Tip
  • Air Discharge Electrode Diameter 30mm
  • Permanent Magnet
  • CD Manual
  • Calibration Report

*The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
