ISO 10605: Testing Electrical Disturbances From ESD on Automotive Road Vehicles

Check out the Skinny on ISO 10605 Edition 3 (Released 2023).

This section will give you a brief overview of the ISO 10605 compliance test standard in regards to electrostatic discharge immunity on automotive / road vehicles. To access the standard you must purchase it from International Standards Organization.

Scope of ISO 10605 Automotive ESD

This International Standard specifies the electrostatic discharge (ESD) test methods necessary to evaluate electronic modules intended for vehicle use. It applies to discharges in the following cases:

  1. ESD in assembly;
  2. ESD caused by service staff;
  3. ESD caused by occupants.

ESD applied to the device under test (DUT) can directly influence the DUT. ESD applied to neighbouring parts can couple into supply and signal lines of the DUT in the vehicle and/or directly into the DUT. This International Standard describes test procedures for evaluating both electronic modules on the bench and complete vehicles. This International Standard applies to all types of road vehicles regardless of the propulsion system (e.g. spark-ignition engine, diesel engine, electric motor). This International Standard is based in part on IEC 61000-4-2 and describes vehicle-specific requirements.

Vehicle Test Method (Section 10 of ISO 10605):

Choose a generator capacitance of 330 pF for areas that can easily be accessed only from the inside of the vehicle and resistance of 330 Ω or 2 kΩ. The maximum test voltage can be limited in this case to 15 kV. Choose a capacitance of 150 pF for points that can easily be touched only from the outside of the vehicle and resistance of 330 Ω or 2 kΩ. In this case, the maximum test voltage is 25 kV. Areas that can be touched both from the outside and inside shall be tested with both generator capacitance values and 15 kV and 25 kV maximum test voltage, respectively.

ESDGuns.com can provide you both ESD Simulator Guns and Discharge Networks specific to your automotive manufacturer.

Automotive ESD Compliance Standards by Manufacturer

  • Ford Motor Company - FMC1278 & EMC-CS-2009.1
  • VolksWagen per TL 824 66  (330pF/330Ω)
  • VolksWagon VW 80972:2001-10 (1500 pF/2200 Ω)
  • General Motors GMW3091, GMW3094, GMW3097, GMW3100  (150 pF/2 kΩ)
  • Hyundai Motor Company - ES-X 44017 HMC (1000 pF/2 kΩ)
  • Chrysler PF9326-D-May 00, Chrysler LP388-C-42 (100 pF/500 Ω)

Other General Compliance Standards for Automotive ESD

  • SAEJ1113-13 (150 pF/2 kΩ; 330 pF/2 kΩ)
  • JASO D001-87 and 94 (150pF/500Ω)

Discharge Resistance/Capacitance

Capacitor

150pF

Capacitance between human body and ground.

outside contact

330pF

Capacitance between human body and seat.

inside contact

Resistor

330Ω

Contact by human with metal object



2000Ω

Contact by human skin

Most Rented ISO 10605 ESD Systems

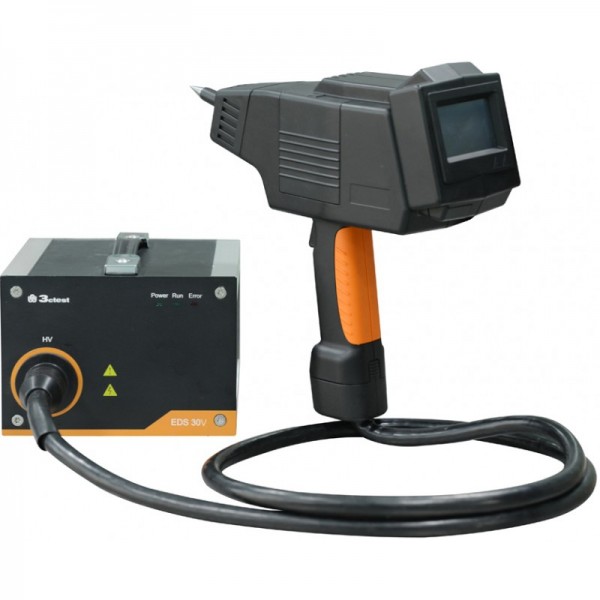

3ctest EDS 30V Automotive ESD Generator

Rent 3ctest EDS 30V Automotive ESD Test Generator Package$1090/month
Rent ISO 10605 ESD Simulator Now

Features:

  • Meets ISO 10605
  • Easily Interchangeable R/C Modules
  • Compact and Portable
  • Built in Battery

Teseq NSG 438 Automotive ESD Test Simulator

Rent Teseq NSG 438 Automotive ESD Test Simulator for ISO 10605$1290/month
Rent TESEQ NSG 438 ISO 10605 ESD Gun

Features:

  • Automotive ISO 10605
  • Advanced Programmability
  • Activiy Log
  • Easily Interchangeable RC Networks

Test Levels from ISO 10605

All tests are to be performed in positive and negative polarities.

Direct Contact Discharge
LevelCategory 1Category 2Category 3
12kV2kV5kV
24kV4kV6kV
36kV8kV8kV
48kV8kV15kV

Indirect Contact Discharge
LevelCategory 1Category 2Category 3
12kV2kV4kV
24kV4kV8kV
36kV8kV15kV
48kV15kV20kV

Direct Air Discharge
LevelCategory 1Category 2Category 3
12kV4kV6kV
24kV6kV8kV
38kV8kV15kV
415kV15kV25kV
