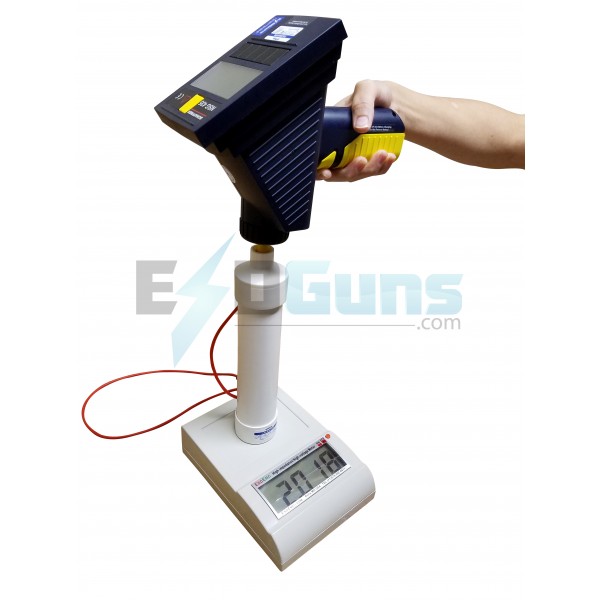

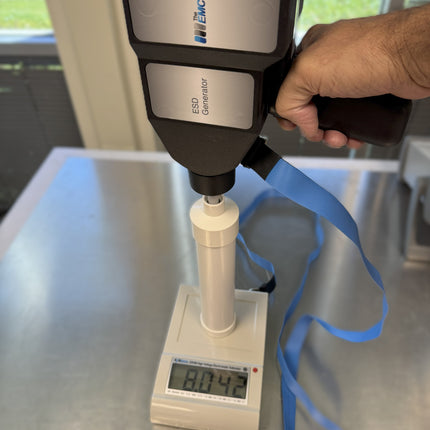

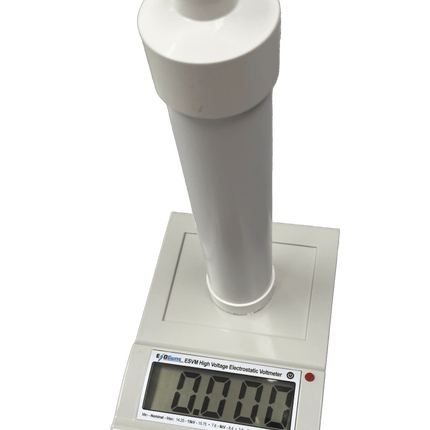

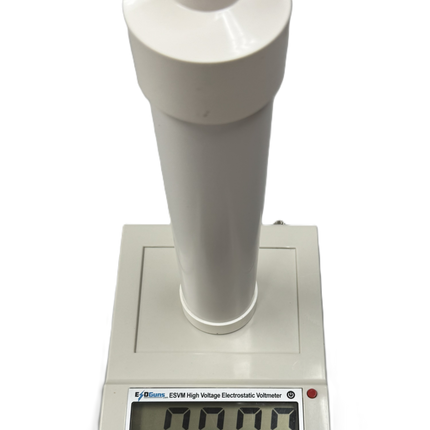

ESVM High Voltage Electrostatic Voltmeter for ESD Generator Voltage Verification

    Description

    The ESVM High-impedance voltmeter for ESD Gun output voltage verification is a compact, cost effetive solution to verify the electrostratic discharge produced by simulators, guns pistols and generators. The ESVM ESD electrostatic voltmeter has a Measurement range: ± 1V ~ 100kV(customization), Accuracy: ± 1% ± 2 counts, Input impedance: ≥ 10 GΩ (customizable, like 30GΩ, 100GΩ), Display: 4 1/2 large LCD, Resolution: 1V.

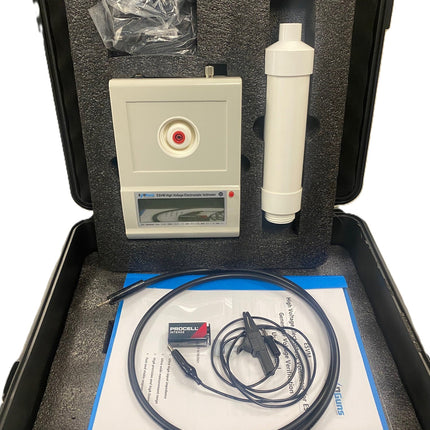

    ESVM Includes:

    • High Voltage Meter

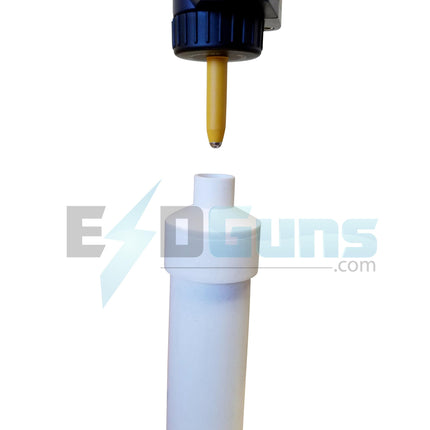

    • Input Tube
    • Monitoring Probe
    • 9V Battery
    • AC Adapter
    • Grounding Cable
    • NIST Calibration Certificate
    • User Manual
    • Carrying Case

    ESVM Applications:

    • Electrostatic voltage measurement
    • ESD generator/simulator calibration
    • Electrostatic voltmeter calibration
    • High-impedance high-voltage measurement
    • Suitable for use for ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more...

    ESVM Specifications:

    • Range: ± 1V ~ 100 kV (customizable)
    • Accuracy: ± 1% ± 2 counts
    • Input impedance: 100 G ohm
    • Display: 4 ½ large LCD/LED
    • Resolution: 1V
    • 20×15×50 cm (7.85×5.91×19.68 inch)
    • 2 kg (4.41 lb)


    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $4,200.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Accessory Kit

      • High Voltage Meter
      • Input Tube
      • Monitoring Probe
      • 9V Battery
      • AC Adapter
      • Grounding Cable
      • NIST Calibration Certificate
      • User Manual
      • Carrying Case

        Features

      • Accredited ISO 17025 Calibration Available
      • High input impedance - 100 GOhm
      • Wide measurement range
      • High accuracy and resolution
      • Stable reading
      • Portable with large LCD/LED
      • Battery or AC supply
      • Measure DC and AC voltage up to 200KHz
      • Suitable for use for IEC 61000-4-2, ANSI C63.16, ISO 10605, Mil-STD 461G CS118 and more...

      Ask & Learn

      Previous answers and questions posted below

      Ask Now

      • What memory does this item have (volatile/nonvolatile, etc.) Can an LOV and user manual be provided

        Hi Cassandra, right now the unit can only be read with it's live input. Feel free to email is for the manual.
