Teseq ESD Guns Teseq INA4550 1000pF-2000Ω Discharge Network per ES-X 44017 HMC

In Stock

The Teseq INA 4550 automotive discharge network is compatible only with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 150pF Resistance: 330Ω Test Standards Met: ES-X 44017 HMC (Hyundai Motor Company) Manufacturer: Teseq ESD Guns

Read more less

In Stock

$990.00

View options

Teseq (Schaffner) INA4553 330 pF/330 Ohm Discharge Module for NSG 438 Automotive ESD Simulator

Teseq ESD Guns Teseq INA4553 330 pF-330 Ohm Discharge Module for NSG 438 Automotive ESD Simulator

In Stock

The Teseq (Schaffner) INA4553 330 pF/330 Ohm discharge module is compatible only with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 330 pF Resistance: 330 Ohms Test Standards Met: ISO 10605 (2001), (2008)

Read more less

In Stock

$0.00

Teseq ESD Guns Teseq INA4569 200 pF-0 Ohm R-C Module for Machine Model (MM) Electrostatic Discharge Testing

In Stock

The Teseq (Schaffner) INA4569 Discharge Network 200pF/0Ohm per JEDEC 22-A115, IEC 61340-3-2 and other standards for Machine Model ESD compliance is compatible with the Teseq NSG 437 and NSG 438 Models Capacitance: 200 pF Resistance: 0 Ohm Test Standards Met: Compatible with Teseq NSG 437 and NSG 438 ModelsCompatible with Teseq NSG 437 and NSG 438 Models ANSI C63.16 Hand / Metal Model JEDEC 22-A115 IEC 61340-3-2

Read more less

In Stock

$89.00

Teseq MD 101 Coaxial Measurement Target per IEC 61000-4-2 - ESDGuns.com - ESD Simulator Guns & Accesorries

Teseq ESD Guns Teseq MD 101 Coaxial Measurement Target per IEC 61000-4-2

In Stock

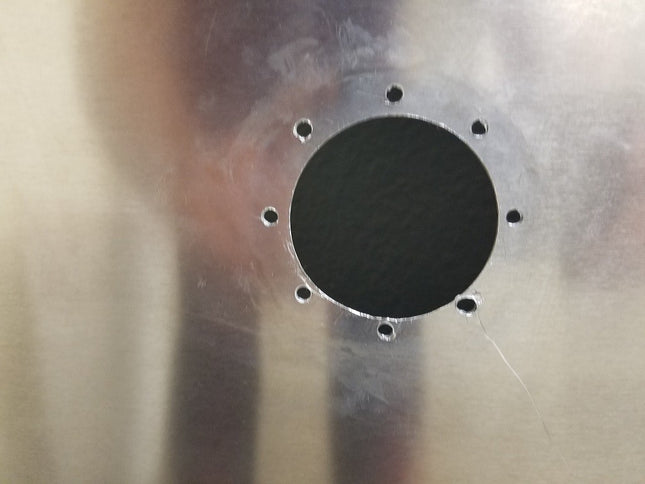

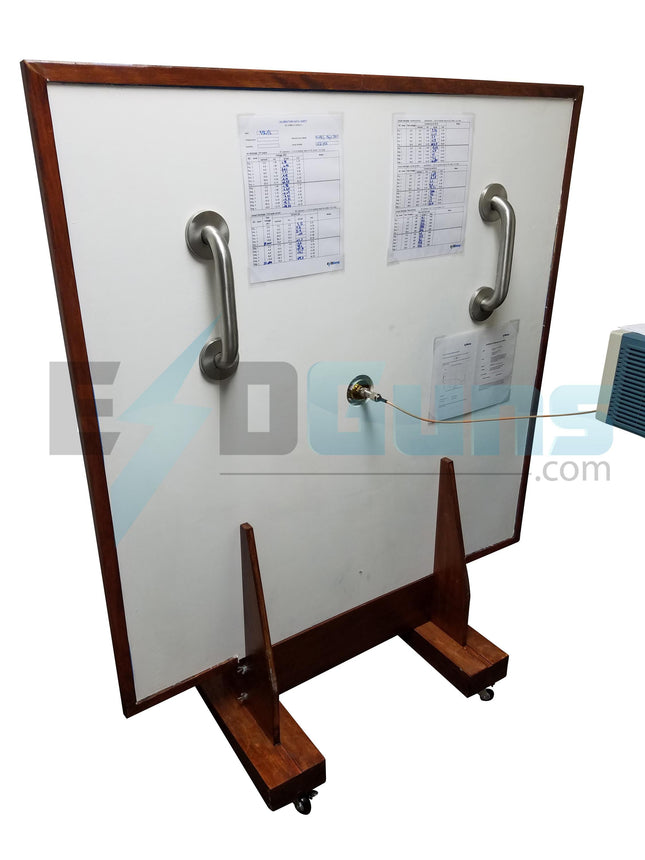

The measurement adapter type MD 101 as per informative annex B of IEC/EN 61000-4-2 serves to verify pulse amplitudes and pulse shapes. It is designed for mounting in the side wall of a Faraday cage in which an oscilloscope has been installed. This measurement adapter, also known as a 'Pellegrini-Target' has the flat impedance curve to well over 1 GHz that is necessary for the purpose. Use of this adapter is only worthwhile in conjunction with a test rig that is laid out in strict conformity with the relevant standard (see section 7).The Teseq MD 103, Pommerenke target, is a more advanced coaxial measuring target with flat response characteristics up to the multi-GHz range. It may be used instead of the Teseq MD 101.

Read more less

In Stock

$2,695.00

Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification - ESDGuns.com

Teseq ESD Guns Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification

In Stock

Calibration procedures on ESD generators call for high class test equipment and a carefully configured test rig. All the elements incorporated within the measurement chain must be matched to one another before highly accurate measurements with minimal uncertainties can be contemplated. Faster oscilloscopes enable more complete measurements and analyses of the fast ESD pulses but, of course, the rest of the components in the measurement chain must be up to the necessary standard and exhibit the appropriate frequency response. Therefore the Teseq MD 103 ESD Pulse Calibration set offers a complete measuring path from the target to the attenuator up to the high quality coax cable. The whole path has to be left together and should not be disassembled into parts, as the whole coupling path is calibrated in one piece. An important component in this chain is the measurement target. Through a collaborative effort with the Swiss Federal Institute of Technology, a new type of construction has been developed featuring a distortion-free, f at frequency characteristic up to at least 6 GHz. Standardization committees work on the pulse definitions of ESD generators to be specified more accurately and hence to ensure greater reproducibility during test trials. Simultaneously the description of the calibration test rig configuration and the measurement conditions have been newly and more precisely specified. The newest recommendations are written in the form of a draft standard that has been submitted to the ANSI as well as the IEC. Results from extensive round robin investigations confirm the feasibility and usefulness of tougher calibration requirements. The draft standard specifies the overall variation of the insertion loss of the whole measurement chain including cabling and any additional attenuators as follows: ±0.3 dB up to 1 GHz ±1 dB between 1 and 4 GHz As a result, the S21 parameter (insertion loss) of a target becomes a decisive factor. The classical measurement shunt can no longer satisfy these increased demands. The MD 103 target fulfils these specifications comfortably. The Teseq MD 103 is manufactured with the highest mechanical and electrical precision and therefore very narrow tolerances are assured. All the important elements are gold plated. The target is supplied ready for mounting in a screening wall. The Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification is a measurement device for calibration laboratories and specialists, who work right at the cutting edge of the latest technological know-how. The set will be delivered as a complete chain, consisting of target, attenuator, cable and a ISO 17025 calibration certificate including all relevant calibration data and graphs. A calibration adapter is also supplied with each target as standard. Thanks to the excellent frequency characteristic and the accurately determined parameters this target cannot negatively influence the uncertainty budget of the measurement chain as a whole. Teseq MD 103 Includes: ESD target 20 dB attenuator High precision coax cable Solid case with spare place for INA 103 Special screw tool Manual Calibration certificate conform to ISO 17025 OPTIONAL: Teseq INA 103 calibration measuring adapter with N-connector

Read more less

In Stock

$940.00

Rent the Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2

Teseq ESD Guns Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun

In Stock

Teseq NSG 437 Features: Air- and contact-discharge to 30 kV Color touch panel control Advanced voltage-hold feature Activity log Light version with uncompromising test performance Compliant with a huge range of OEM and international standards Easily and quickly interchangeable discharge networks Discharge detector Ergonomic design and advanced functionality. The Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display.Teseq NSG 437 comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 437 can meet any of today’s automotive manufacturers’ standards.The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The color touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Teseq NSG 437 Ordering Options: Teseq NSG 437: COMPREHENSIVE ESD SIMULATION SYSTEM (30kV air and contact) Includes: Discharge Pistol, IEC 61000-4-2 330 Ohm/150pF High Voltage Network, charging unit 80 – 240VAC, Ground cable, User manual Teseq NSG 437 Automotive: COMPREHENSIVE AUTOMOTIVE ESD SIMULATION SYSTEM (30kV air and contact) with the following four RC networks: INA 4380 IEC 61000-4-2 Discharge Network 330 Ohm/150pF INA 4381 ISO 10605 Discharge Network, 150pF/2kOhm INA 4382 ISO 10605 Discharge Network, 330pF/2kOhm INA 4553 Discharge Network 330pF/330Ohm Also includes: Discharge Pistol, High Voltage Network, Mains adapter / charging unit 80 –240VAC, Ground cable, User manual Rentals of the Teseq NSG 437 available on a month to month basis.

Read more less

In Stock

$795.00 - $1,395.00

View options

Teseq NSG 439 ESD Simulator for Robotic Applications

Teseq ESD Guns Teseq NSG 439 ESD Simulator

In Stock

Today’s growing trend towards miniaturizing and more comprehensive product standards means that ESD testing is now required not only for operating controls, but also for any associated peripheral devices such as sensors, actuators and controllers. Many of these devices have multi-pin connectors with high pin counts. In order to meet space restrictions, these pins are often arranged close together.However, conventional air-discharge testing of these closely spaced pins is problematic because the airdischarge arc may jump to an adjacent pin instead of the pin intended for test. With an innovative robotic air-discharge adapter accessory, Teseq provides a tool which will prevent unintentional discharge paths. Furthermore, the approach speed, which is crucial for reliable air-discharge testing, can be programmed as a constant.ESD testing of connectors often requires that each individual pin is tested for an extensive range of conditions including multiple discharges, polarities, voltage settings, and even R/C networks. Connector testing can take many hours or even days of monotonous, precise effort to complete. As a result, when this testing is done manually it is prone to errors. The advantage of robotic testing is that these procedures can be automated and precisely executed, ensuring a level of repeatability that cannot be achieved with manual testing. Teseq NSG 439 Features: Air- and contact-discharge to 30 kV Battery tested to 30’000 discharges at 30 kV Standard Discharge Networks for IEC 61000-4-2, RTCA/DO-160 and Mil-STD-461G CS 118 Custom Discharge Networks for ISO 10605 Touch panel control Advanced voltage-hold feature Activity log Compliant with a huge range of OEM and international standards Built-in ISO self-calibration procedure Easily and quickly interchangeable discharge networks Selectable discharge detector

Read more less

In Stock

$0.00

Keytek Minizap MZ-15/EC 15kV ESD Simulator Gun

Thermo Keytek Thermo KeyTek MZ-30 Minizap ESD Simulator up to 30kV

In Stock

The test voltage levels of the MZ-30 are more than sufficient for compliance to required IEC standard level 4 (15 kV) levels. Essentially a design tool, it allows you to identify the conditions where your product begins to degrade or malfunction (limit value), prior to production, and thus is also ideal for testing to category- or companydriven quality standards. The operation panel has keys and a rotary knob, which allow you to directly set test levels specified by the IEC standard. These controls facilitate adjustment for standardcompliance tests and other various settings. In addition to the standard 150 pF capacitor unit and 330O discharge resistor, a variety of optional components are available including a 330 pF capacitor unit and 2kO discharge resistor. The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality. The MZ-30 also supports the seven discharge current waveforms prescribed for the waveform calibration method laid down in a target compliant with IEC61000-4-2 Editions 1. In addition, it was designed to suppress waveform ringing to improve waveform quality. Keytek Minizap MZ-30 Features: Intuitive operation Portable & self-contained Meets exact requirements of IEC 61000-4-2 Contact mode & air discharge ESD testing Generates real world, repeatable & correlatable ESD pulses E & H Field diagnostics Built-in safety features Field-configurable AC powered

Read more less

In Stock

$8,900.00

ESD Immunity testing example with the Keytek MZ-15 ESD Gun

Thermo Keytek Thermo Keytek TPC-2A Contact Tip for Minizap Simulator, 0.7-1 ns Rise Time

In Stock

The Keytek TPC-2A contact discharge tip is the most recent generation tip used with the Keytek Minizap MZ-15 and MZ-15/EC ESD simulators, compliant to IEC 61000-4-2, edition 2 and 3. ESDguns.com stocks replacement tips for easy ordering and replacement.

Read more less

In Stock

$1,850.00

Measurement Accuracy Trek 884 Electrostatic Voltmeter

Trek Trek 884 Non-Contacting Electrostatic Voltmeter

In Stock

The Trek 884 (±20kV) Hand-Held Electrostatic Voltmeters provide accurate, noncontacting measurements of electrostatic surface voltage for ESD applications in either ionized or non-ionized environments. The Trek 884 voltmeters utilize a measurement technique that overcomes the disadvantage of the typical hand-held field-meter by providing surface voltage measurements which are essentially independent of the sensor probe-to-measured surface spacing. Trek 884 Applications: Measurement of electrostatic surface charge build up Manufacturing processes Electronic assembly testing Semiconductor material testing Dissipative material testing Automotive electronics testing ESD Auditing and troubleshooting

Read more less

In Stock

$299.00

Thermo Keytek Used Keytek (Thermo Fisher) Minizap MZ-15-EC 15kV ESD Simulator Gun

In Stock

For descriptions, videos and more visit the Rent Thermo Keytek Minizap MZ-15/EC web page. Right now, ESDguns.com has an excess inventory of rental units and has allocated this unit for sale. Used Keytek Minizap MZ-15/EC Features: Recently rebuilt internal battery Fresh NIST Calibration Certificate Industry best 100 Day warranty Ships Immediately Rent Keytek Minizap ESD Simulators here. TPC-2A and TPA-2 Included Standard - additional tip and accessories available Thermo Keytek Minizap Video Overview

Read more less

In Stock

$7,500.00

Rent VCP Vertical Coupling Plane for Indirect ESD Testing

ESDGuns.com VCP Vertical Coupling Plane for Indirect ESD Testing

In Stock

Utilize the vertical coupling plane with any ESD generator, setup in seconds on any lab bench and begin testing immediately. The indirect radiated portion of electrostatic immunity testing is required for compliance. If your product will be used in metal cabinets, next to industrial machinery or even on top of the metal counters at your corner supermarket, electric shock may cause radiated interference. VCP Vertical Coupling Plane consists of: VCP Aluminum 20" by 20" Wood Stand Ground Cable with 470k Ohm resistors for voltage bleeding

Read more less

In Stock

$675.00
