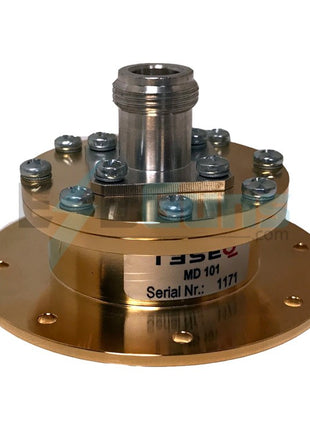

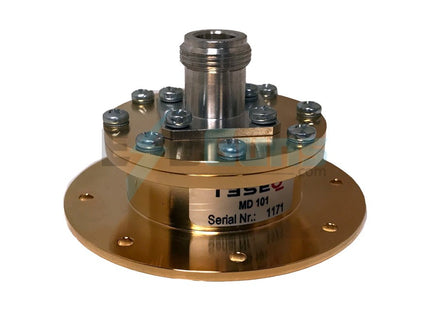

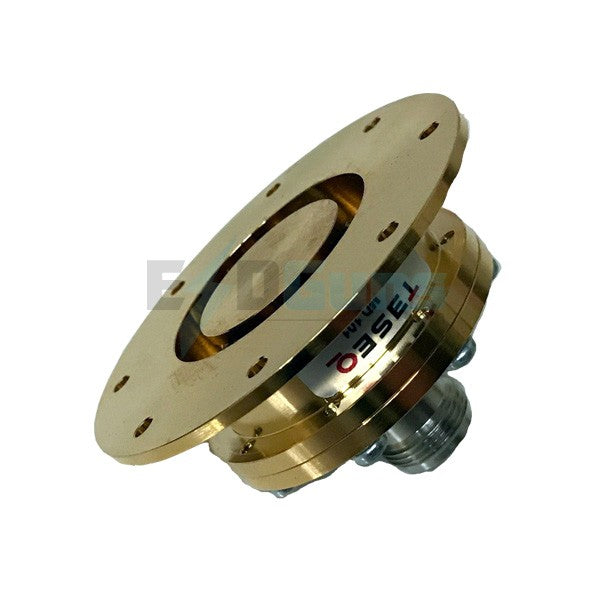

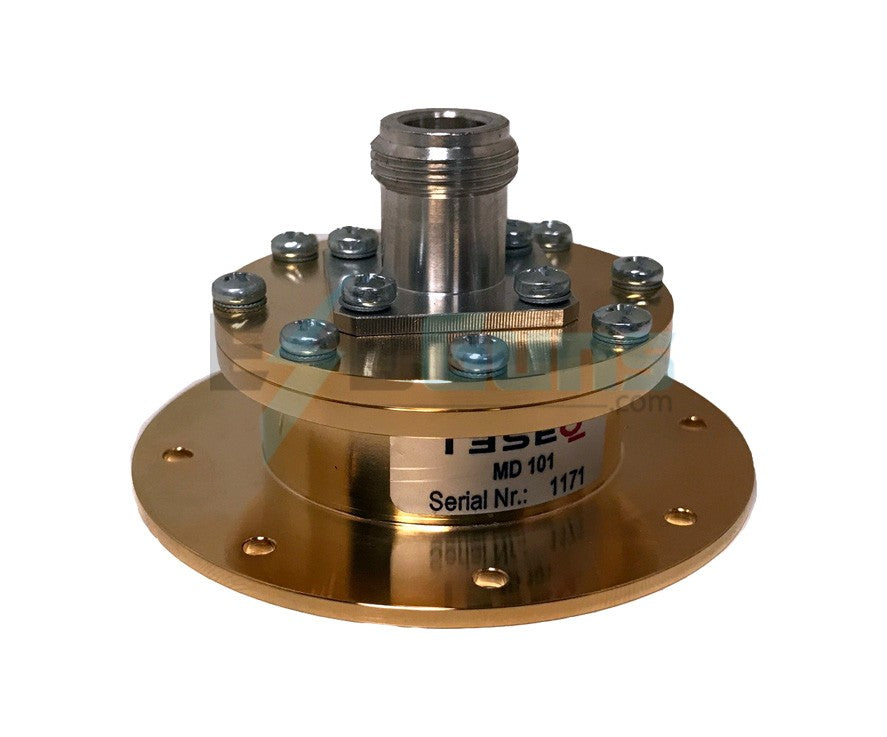

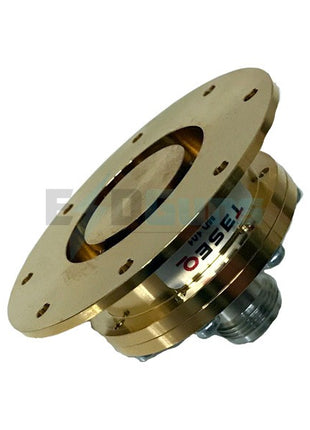

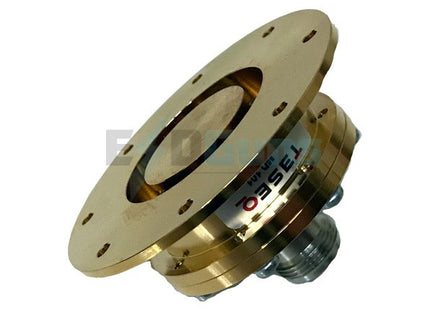

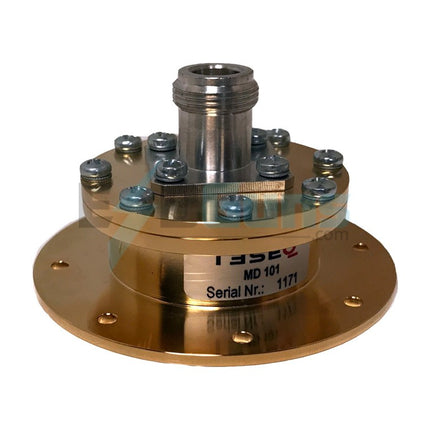

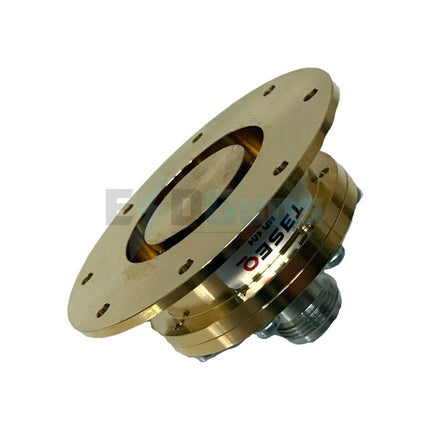

Teseq MD 101 Coaxial Measurement Target per IEC 61000-4-2

    Description

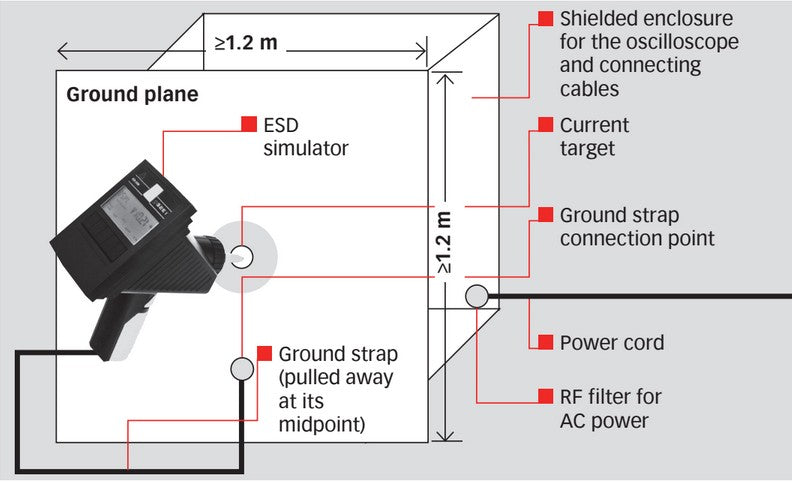

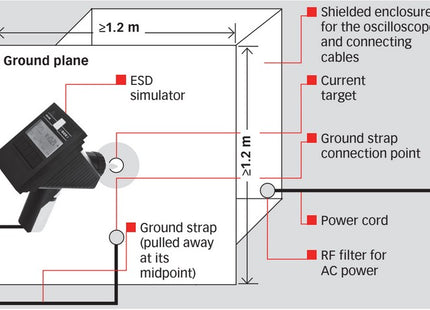

    The measurement adapter type MD 101 as per informative annex B of IEC/EN 61000-4-2 serves to verify pulse amplitudes and pulse shapes. It is designed for mounting in the side wall of a Faraday cage in which an oscilloscope has been installed. This measurement adapter, also known as a 'Pellegrini-Target' has the flat impedance curve to well over 1 GHz that is necessary for the purpose.

    Use of this adapter is only worthwhile in conjunction with a test rig that is laid out in strict conformity with the relevant standard (see section 7).

    The Teseq MD 103, Pommerenke target, is a more advanced coaxial measuring target with flat response characteristics up to the multi-GHz range. It may be used instead of the Teseq MD 101.

    Product form

    In Stock  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $2,695.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day
        Features

      • Target for precise ESD pulse measurements
      • Very small insertion loss variation
      • Precise gold plated construction
      • Requires attenuator and RF cable
      • Designed per IEC 61000-4-2 (1995)

      Ask & Learn

      Previous answers and questions posted below

      Learn by asking questions, practicing, and getting guidance

      Ask Now

      Description

      The measurement adapter type MD 101 as per informative annex B of IEC/EN 61000-4-2 serves to verify pulse amplitudes and pulse shapes. It is designed for mounting in the side wall of a Faraday cage in which an oscilloscope has been installed. This measurement adapter, also known as a 'Pellegrini-Target' has the flat impedance curve to well over 1 GHz that is necessary for the purpose.

      Use of this adapter is only worthwhile in conjunction with a test rig that is laid out in strict conformity with the relevant standard (see section 7).

      The Teseq MD 103, Pommerenke target, is a more advanced coaxial measuring target with flat response characteristics up to the multi-GHz range. It may be used instead of the Teseq MD 101.

      Featured products

      Equipment often ordered with ESD guns.

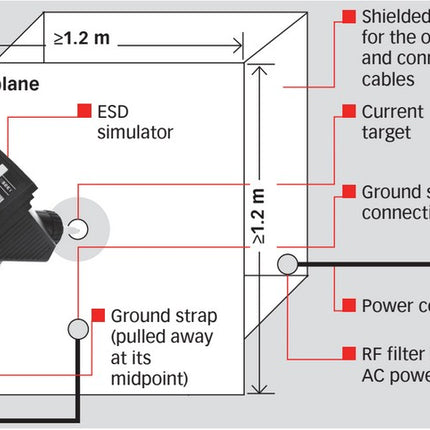

      • ESD Generator Verification & Calibration Equipment Package
