Browse 30kV ESD simulators for ISO 10605, Mil-STD 883 and other high voltage electrostatic immunity test parameters. Current model 30 kV ESD simulators have easy to access and replace discharge networks to allow for specialized ESD capacitance and resistance testing.

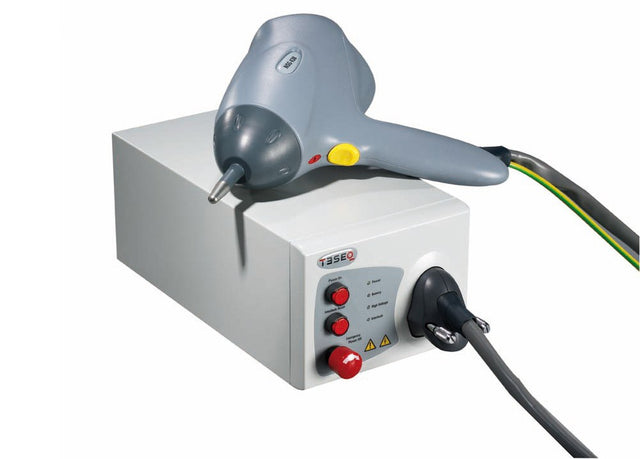

The Teseq NSG 438 ESD Simulator System (formerly by Schaffner) is one of the most commonly requested 30 kV ESD guns in the commercial electronic, automotive and military industries. ESD Guns stocks calibrated NSG 438's as well as an assortment of discharge networks and accessories (found below) for unique test applications. Process an online order now by adding this item to your cart and checking out, select your preferred shipping method or input your shipping account and tell us what method you want shipped. Two days are credited to allow for transit of the equipment, after 32 days your rental is prorated daily and invoiced/billed accordingly. Continue renting the Teseq NSG 438 as long as needed and return to our HQ in California, no RMA is required. If you require a formal quote to initiate the rental in your organization, contact us now. Teseq NSG 438 Rental Package Includes: HV Base Station w/ Internal Battery and Mount for Grounding Cable Interlock Connectors (QTY 2 Installed on Base Station) Discharge Pistol (Grounding Cable Installed) INA 4380 R/C Module (150pF/330Ohm) Contact Discharge Tip Air Contact Tip Pistol Cradle AC Power Adapter NIST Calibration Certificate with Data User Manual (PDF version below)
$365.00 - $2,270.00
The Haefely ONYX 30 kV electrostatic discharge simulator is It is the most ergonomic ESD test gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 30 kV ESD test gun in all types of test sites. The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX 30 kV ESD test gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used. Haefely ONYX 30 kV Features: Flexibility – enables users to meet many different test specifications with maximum cost effectiveness. Quick and simple – one touch operation and simple on screen menu structure. Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit. Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package. Accessory Kit for Haefely ONYX 30 kV: Test tip air discharge Test tip contact discharge 2 rechargeable battery packs Ground cable Battery charger unit includes mains adaptor set R/C module 150 pF/330 Ω according to IEC 61000-4-2 Quick start guide Manual on CD Calibration certificate Rugged Carrying Case
$590.00 - $990.00
The static electricity between human body and an object or between two objects sometimes can be up to tens of thousands of volts, which may cause electrical and electronic equipments circuit malfunction or even damage. EDS 30V is a most advanced intelligent electrostatic discharge generator, the output voltage 30kV, it is also China’s first independent research and development product with collection discharge tip and touch screen control in an electrostatic discharge simulator, in accordance with ISO 10605 and GB/T 19951 standards. LCD touch screen is simple and easy to operate, RC module can be replaced, the built-in temperature hygrometer, remote control software, to ensure the reliability of all kinds of tests. Applications: Communication Information technology Telecom Automotive Military Medical Aviation Broadcast and TV New energy and power Railway 3ctest EDS 30V Features: Air- and Contact- Discharge: 1000-30,000 Volts ±5% Resolution: 100 Volts Hold Time: >5 seconds Frequency Repetition: Single/0.2/0.2/0.5/1/2/5/10/20 Hz Standards Met: Bellcore GR-1089-Core, IEC/EN 61325, IEC/EN 61000-6-1 and 6-2, ISO 10605, ITU-TK.20, GB/T 17626.2 and more... Integrated sensor to monitor temperature and humidity Rise Time: 0.8 ns ±25% (0.6 to 1 ns) Current Peak Value Accuracy: ±10%
$1,195.00
The EMC Partner ESD 3000 is a fully automated and programmable ESD simulator. It identifies which discharge module is installed and has a level selector button enabling the user to quickly scroll through and select the voltage from the levels appropriate to the standard and discharge mode. The set pulse count is executed with a single pull of the trigger in either air or direct contact mode. Polarity can be programmed to alternate or can be changed with the push of the +/- button at any time. Voltage can be programmed to ramp up or down or quickly changed at any time by using the up and down arrow buttons. Discharge Modules for EMC Partner ESD3000: DM1 for IEC 61000-4-2,ITU-T K20: 150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM2 for ISO TR10605, PSA Peugeot-Citroën B21 7110: 330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM4 MIL-STD-883, GR78-CORE: 100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV DM5 for RTCA/DO-160: 150pF / 330ohm no CD +/-1kV up to 30kV DM6 for IEC 61340-3-1, JEDEC 22-A114, MIL-STD-750D: 100pF / 1500ohm +/- 0.2kV up to 8kV no AD DM7 for IEC 61340-3-2, JEDEC 22-A115: 200pF / 0ohm +/- 0.1kV up to 2kV no ADDM8 for IEC 60571, EN 50155: rise time < 0.05µs duration 0.1µs +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV RM32 0.7ns up to 1ns and < 400ps: +/- 1kV up to 30kV +/- 1kV up to 30kV DN1 for IEC 61000-4-2, RTCA/DO-160, PSA Peugeot-Citroën B21 7110, GMW 3100: 150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN2 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN3 for ISO TR10605, SAEJSSI-IS, FORD AB/AC, GMW 3097: 150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN4 for STANAG 4239, ISO 14304, MIL-STD-1512: 500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV DN5 for MIL-STD-331C, MIL-DTL-23659D, STANAG 4239: 500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV DN6 for ISO TR10605: 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
$895.00 - $1,495.00

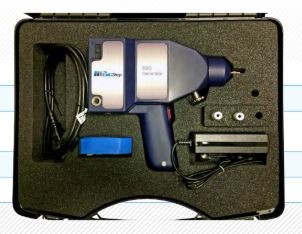

ESD30 ESD Simulator Includes Everything for Testing: ESD30 Handheld, battery operated ESD simulator Battery charger/AC Adapter Air discharge tip Contact discharge Ground cable 1 meter Manual Calibration Certificate 10% off Calibration Service for Life of the Unit ESD30 30kV ESD Simulator for IEC/EN 61000-4-2 The ESD30 30kV ESD Simulator is suitable for performing EMI tests on systems in accordance with the standard IEC / EN 61000-4-2 , MIL-STD-461G CS118, RTCA/DO-160 Section 25, IEC 60601-1-2 and many other ESD test standards. Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air Discharge In this case, the pulse is triggered by approaching the ESD16 towards the DUT. The high voltage applied to the discharge electrode is discharged suddenly, resulting in a very broadband highfrequency interference spectrum. This in turn can lead to influences on the test specimens. Contact Discharge With this method, the probe of the generator is placed directly on the test object. The actual "impulse triggering" takes place via a relay contact and reduces the influencing factors such as approach speed, amplitude height, air humidity and temperature.Important: In the case of non-contacting (eg painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the preferred test method since it is most reproducible. Air discharges are used when contact discharges are not possible - e.g. at plastic housings. The test voltages defined for each test method are shown in the table below: ESD30 Features Programmable discharge voltage 200V to 30kV Stabilized charging voltage Pre-programmed IEC/EN 61000-4-2 test settings True air-discharge breakdown voltage Compact and lightweight design ESDguns.com is now a division of The EMC Shop
$695.00 - $10,275.00

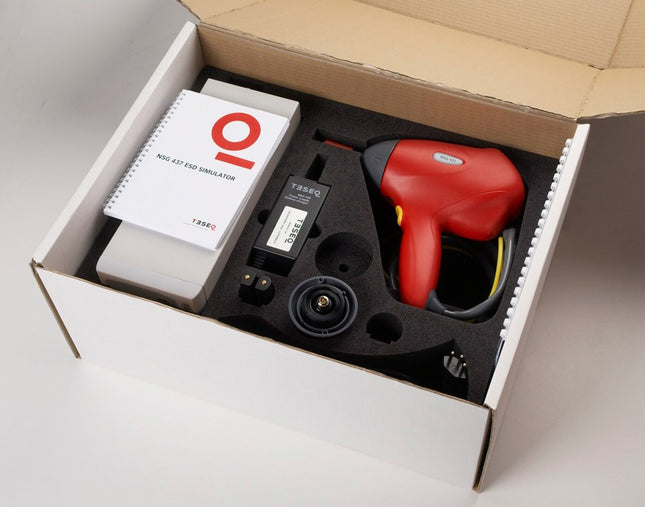

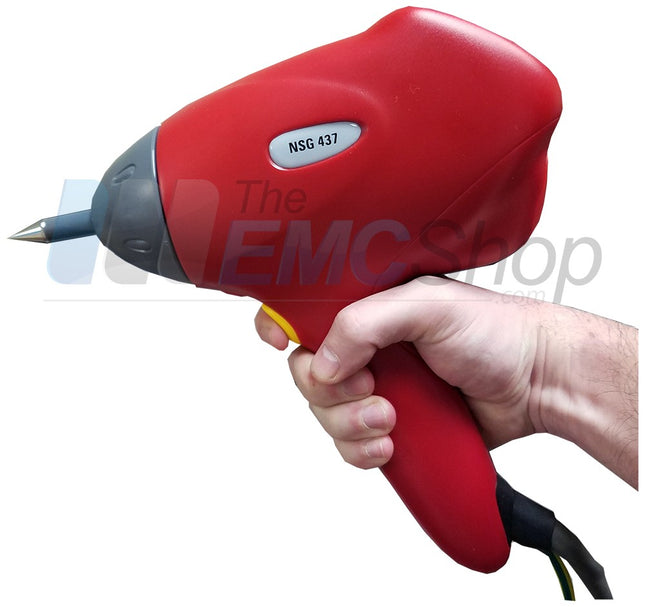

Teseq NSG 437 Features: Air- and contact-discharge to 30 kV Color touch panel control Advanced voltage-hold feature Activity log Light version with uncompromising test performance Compliant with a huge range of OEM and international standards Easily and quickly interchangeable discharge networks Discharge detector Ergonomic design and advanced functionality. The Teseq NSG 437 Electrostatic Discharge (ESD) Simulator Gun for GR-1089 & IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display.Teseq NSG 437 comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 437 can meet any of today’s automotive manufacturers’ standards.The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The color touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Teseq NSG 437 Ordering Options: Teseq NSG 437: COMPREHENSIVE ESD SIMULATION SYSTEM (30kV air and contact) Includes: Discharge Pistol, IEC 61000-4-2 330 Ohm/150pF High Voltage Network, charging unit 80 – 240VAC, Ground cable, User manual Teseq NSG 437 Automotive: COMPREHENSIVE AUTOMOTIVE ESD SIMULATION SYSTEM (30kV air and contact) with the following four RC networks: INA 4380 IEC 61000-4-2 Discharge Network 330 Ohm/150pF INA 4381 ISO 10605 Discharge Network, 150pF/2kOhm INA 4382 ISO 10605 Discharge Network, 330pF/2kOhm INA 4553 Discharge Network 330pF/330Ohm Also includes: Discharge Pistol, High Voltage Network, Mains adapter / charging unit 80 –240VAC, Ground cable, User manual Rentals of the Teseq NSG 437 available on a month to month basis.
$483.30 - $1,053.90

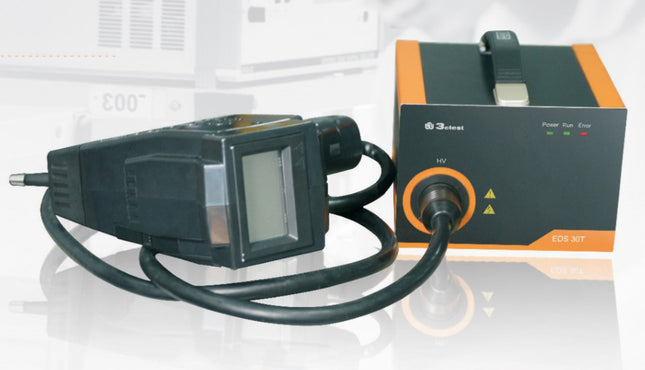

The 3ctest EDS 30T Electrostatic Discharge ESD Generator is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 30 kV. The unit has the best price point of its 30 kV simulator comparables and is growing in popularity among engineering firms and manufacturers performing debugging and precompliance test evaluations.
$990.00 - $13,950.00

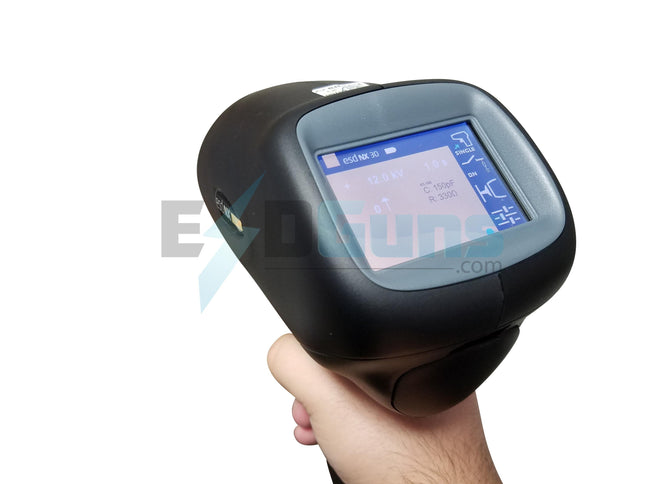

The EM Test ESD NX30 is the first Electrostatic Discharge Simulator released by Ametek's Compliance Test Solutions (CTS) division. With the collaboration of EM Test and Teseq (formerly Schaffner) engineers, the ESD NX30 is the most advanced ESD generator available. The ESD NX30 electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30 kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognized by the controls and indicated in the display. Video Overview: EM Test ESD NX30 Electrostatic Discharge Simulator The ESD NX30 is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the esd NX30 separating the sensitive computer from the test set-up and to avoid ground loops. ESDguns.com - Division of The EMC Shop
$990.00
The Schloder test generator SESD 216 simulates electrostatic discharge as defined in the standard IEC / EN 61000-4-2. It is the most ergonomical and lightweight of all handheld, battery operated 30kV ESD simulators on the market. It's compact design and lightweight chassis makes it easy for users to handle during long sessions of testing, evaluation or debugging. Schloder SESD 216 Rentals Includes: 30kV ESD Simulator Battery Charger (Also runs on AC during charge) Air Discharge Test Tip Contact Discharge Test Tip Ground Cable Carrying Case User Manual Calibration Certificate with Data and Waveforms 10% off Calibration Service for Life
$276.25 - $1,772.25
The Noiseken ESS-2000 simulator is a popular among car manufacturers such as Honda and Toyota for ISO 10605 ESD Testing. The ESS-2000 provides four operation modes, allowing the operator to conduct a single step testing for the IEC specified test voltages and for a series of stored test settings. Noiseken ESS-2000 Features: Meets and far exceeds the requirements in EN/IEC61000-4-2 Up to 30kV output in both contact and air discharges A light weight discharge gun Easily changeable capacitor and resistor units A wide range of options CE marked Controllable from an external computer using various communication interfaces.
$1,195.00 - $7,800.00
Electrostatic discharges either from a human body to any other part or between two different objects can cause persistent disturbances or even destruction to sensitive electronics or controls.ESD 30N is an ESD tester to simulate ESD pulses at higher voltages up to 30kV in both air and contact discharge mode. It therefore satisifies requirements exceeding the EN/IEC 61000-4-2 test levels and complies to automotive test applications. The EM Test ESD 30N electrostatic discharge simulator is an easy-to-use tester. It consists of a power supply unit and the discharge gun, operated from the discharge gun. It generates electrostatic discharges up to 30kV in both air and contact discharge mode. The discharge tips can easily be changed. The discharge networks can be easily changed as they are plugged into the discharge gun. The actual discharge network in use is recognised by the controls and indicated in the display.The EM Test Dito ESD 30N ESD Simulator/Generator is either mains supplied or supplied by a DC source. Even battery powered operation is possible. Battery operation becomes relevant for testing e.g. as per DC-11224 or VW TL 824 66, ESD Operating Test, where the ground of the ESD generator is connected to the Field Coupling Plane and the Horizontal Coupling plane but not directly to the Reference Ground Plane. Additionally, a fiber optic link is offered as an option to communicate with the ESD 30N separating the sensitive computer from the test set-up and to avoid ground loops. EM Test ESD 30N Features:
$13,540.00
The EMC Shops’ ESD30-Auto is an easy to use electrostatic discharge generator tailored for automotive ESD standards ISO 10605, SAE J113/13, GMW 3097 and more. With a straightforward interface, compact package and low cost, the ESD30-Auto has been accepted by compliance laboratories and automotive electronics manufacturers alike. Configured with the standard package includes resistance 150pF and capacitance 330Ohm modules, suitable for basic ESD testing on commercial and military electronics (IEC 61000-4-2, MIL-STD 461, and more). With a level of configurations, the ESD30-Auto can be built for all-day, everyday use to occasional use, while being budget friendly. The EMC Shop, sister to ESDguns.com, has advanced knowledge and understanding of electrostatic discharge applications and serves as a resource before and after purchase. ESD30-Auto ESD Generator Features Meets ISO 10605 and manufacturer standards Built-in self test feature Integrated automatic charge absorber Ergonomic & Lightweight Straight forward and easy to use interface ≥ 5 second holding time Remote control software available Optional built in battery ESD30-Auto ESD Generator Includes ESD Generator with connection cable Desktop control unit with mains cable Capacitor module 150 pF Capacitor module 330 pF Resistor module 330 Ohm Resistor module 2000 Ohm Contact discharge test tip Air discharge test tip Discharge return cable, 2 m Manual Carrying Case Traceable Calibration Certificate (Accredited Available) Additional Options for ESD30-Auto ESD30-FRT Fast Rise Time Tip (.45 ns) ESD30-Arm Support arm with balancer ESD30B-HBM System with built in battery (same as ESD16/30) ESD-SPHERE-TIP Test tip, 30 mm diameter, for Air discharge > 15 kV ESD-TIP-EXT Test tip, 50 mm long with spring contact, for Contact discharge ESD 271 VCP – vertical coupling plate incl. Earth cable (2 x 470 kOhm) GRC-2M Earth cable set incl. 2 x 470 kOhm resistor, 2m long CST2 ESD Verification Set 2 Ohm (4 GHz) for verification the ESD pulse VGP Vertical Ground Plane for ESD Current Target Approx 4’ by 4’ ESD CONTROL Optical set and remote software ESD TEST ENVIRONMENT Turnkey setups for commercial or automotive ESD testing
$1,150.00 - $17,600.00
