Rent the EMC Partner ESD system platform with R/C modules for special industry test requirements for electrostatic discharge immunity. ESDguns.com stocks calibrated EMC Partner ESD generator test systems and accessories.
EMC Partner
-
EMC Partner EMC Partner ESD3000DN32-MIL2 450 pF - 150 Ohm Network for Military ESD Testing
EMC Partner ESD3000DN32-MIL2 450 pF / 150 Ohm Network for Military ESD Testing EMC Partner ESD3000DN32-MIL2 Features: Capacitance/Resistance: 450pF / 150ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL2 Package Includes: ESD3000DN32-MIL2 RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00
-
EMC Partner EMC Partner ESD3000DN32-MIL3 500 pF - 0 Ohm Network for MIL-STD-1576
EMC Partner ESD3000DN32-MIL3 500 pF / 0 Ohm Network is used to meet MIL-STD-1576. EMC Partner ESD3000DN32-MIL3 Features: Capacitance/Resistance: 500pF / 0 ohm ±10% Voltage range (CD) Contact Discharge: 2 - 30kV Compliance Standards: MIL-STD-1576 Requires ESD3000RM32 High Voltage Relay and ESD3000 ESD Gun EMC Partner ESD3000DN32-MIL3 Package Includes: ESD3000DN32-MIL3 500pF/0Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diameter 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$595.00
-

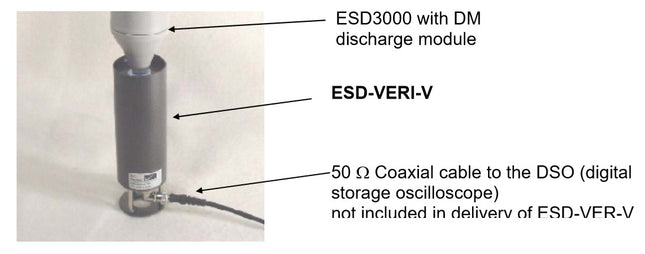

EMC Partner EMC-Partner Veri-V Calibrator for Air Discharge Voltage

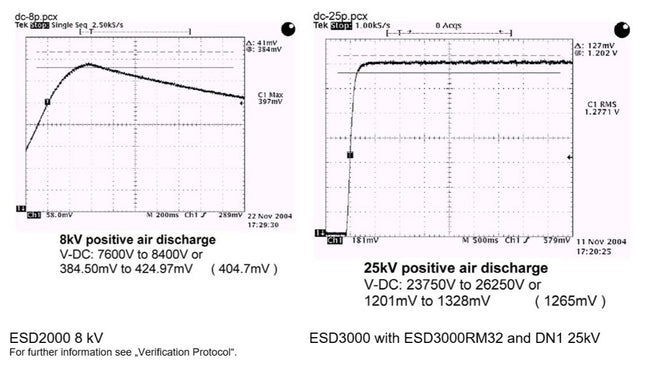

Easily set up and verify the air discharge output voltage and waveform of your ESD simulators using the EMC Partner Veri-V.
$0.00
-

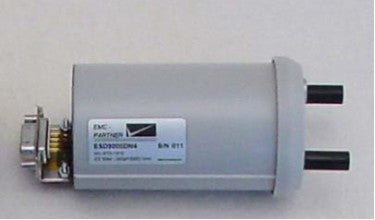

EMC Partner EMC Partner ESD3000DN5 500 pF - 500 Ohm Network for MIL-STD-331
EMC Partner ESD3000DN5 500 pF / 5000 Ohm Network is used to meet MIL-STD-331 and other electrostatic immunity standards. EMC Partner ESD3000DN5 Features: Capacitance/Resistance: 500pF / 500ohm Voltage range (CD) Contact Discharge: +/- 1kV up to 30kV Voltage range (AD) Air Discharge: +/- 1kV up to 30kV Compliance Standards: MIL-STD-331, STANAG 4239, MIL-SRL-23659D EMC Partner ESD3000DN5 Package Includes: DN5 500pF/5000Ohm RC module Air Discharge Tip Contact Tip Air Discharge Electrode Diamete 30mm Permanent Magnet CD Manual Calibration Report *The ESD3000DN5 is a 30kV module required the ESD3000RM32 relay module and ESD3000 discharge pistol to complete testing.
$395.00
-
EMC Partner EMC Partner DN3 Automotive Discharge Module for ISO 10605 ESD Compliance
The EMC Partner DN7 Automotive Discharge Module meets ISO TR10605, SAE JSSI-IS, FORD AB/AC automotive ESD immunity compliance standards. It requires use with the EMC Partner ESD 3000 electrostatic discharge generator and EMC Partner RM32 Relay Module. EMC Partner ESD3000DN3 Features: Capacitance/Resistance: 150pF / 2000 ohm Voltage range (CD) Contact Discharge: 30 kV Voltage range (AD) Air Discharge: 30 kV Compliance Standards: Automotive ISO TR10605, SAE JSSI-IS, FORD AB/AC
$171.00
