Schaffner / Teseq NSG 435 ESD Simulator for IEC 61000-4-2

Schaffner / Teseq NSG 435 ESD Simulator for IEC 61000-4-2 - Electrostatic Discharge (ESD) Guns View larger
Previous Next

Used

  • Programmable discharge voltage 200 V to 16.5 kV
  • Stabilized charging voltage
  • Pre-programmed IEC/EN 61000-4-2 test settings
  • True air-discharge breakdown voltage
  • Compact and lightweight design
  • Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards

More details

$590.00 + Shipping

  • Rental - 1 Month
  • Rental - Bi-Weekly
  • Rental - Weekly
  • Rental - 3 Months

In Stock

Request Quote/More Info

Download

Datasheet: Teseq NSG 435 ESD Gun

Download (1.04M)

Manual: Teseq NSG 435

Download (3.2M)

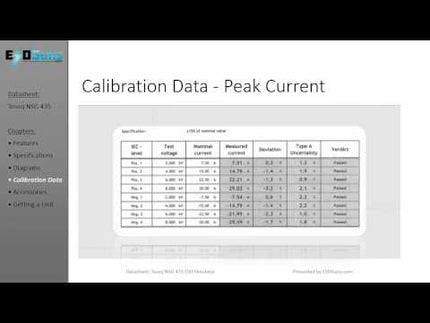

Data sheet

Air Discharge Voltage200 V to 16.5 kV
Contact Discharge Voltage200 V to 9 kV
Voltage Resolution100 Volt Steps
Radiation RatingII
Discharge tipsBall and point as per IEC
Pulse networksNetwork 150 pF/330 Ω as per IEC/EN 61000-4-2 (included)
Charging voltage measurementkV, accuracy better than ±5% (stabilized);measurement and display of true air fl ashover voltage
Discharge detection (air-discharge only)Indicated by an oval around the kV symbol, also acoustically in the'Single' operating mode (air-discharge only)
Holding timeOver 5 seconds (±5%)
PolarityPositive / negative / automatic change
Operating modesSingle, repetitive, continuous
DisplayLCD panel showing: charging voltage, discharge voltage, polarity,air-/contact-discharge, counter/preselect counter content, soft-keyfunctions, battery monitor
Discharge Repetition0.5/1/5/10/20 or 25 Hz (air); 0.5/1/5 or 10 Hz (contact);
Discharge Counter0 to 9999
Standards MetIEC/EN 61000-4-2, ANSI C63.16, RTCA/DO-160
Weight1.2 kg (2.6 lbs) approx.

More info

Teseq NSG 435 Overview

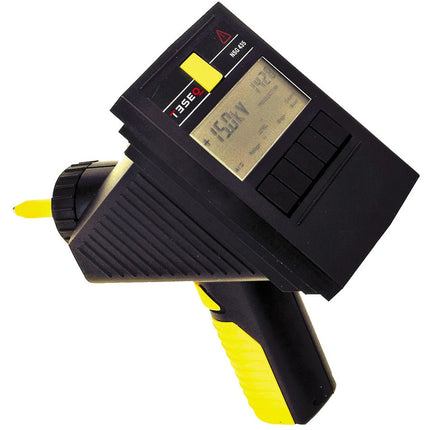

Ergonomic design and advanced functionality. The pistol-shaped Teseq (formerly Schaffner) NSG 435 ESD simulator for IEC 61000-4-2 is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible.

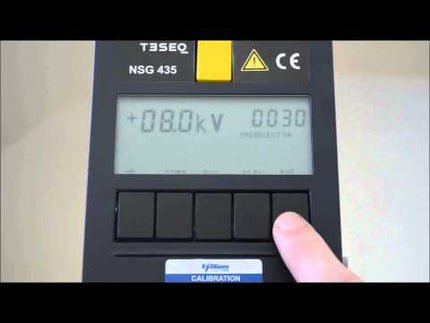

The Teseq / Schaffner NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.

The Teseq NSG 435 ESD simulator has its own internal, battery operated high voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged.

Teseq NSG 435 Features

  • Programmable discharge voltage 200V to 16.5kV
  • Stabilized charging voltage
  • Pre-programmed IEC/EN 61000-4-2 test settings
  • True air-discharge breakdown voltage
  • Compact and lightweight design

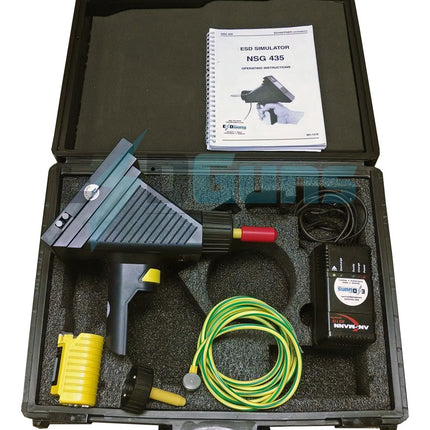

Teseq NSG 435 Includes

  • Air Discharge Tip
  • Contact Discharge Tip
  • Grounding cable
  • Rechargeable Battery

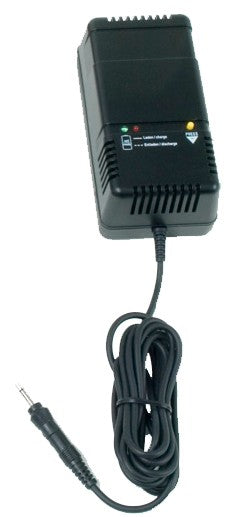

  • Battery Charger
  • Tripod Mount
  • User Manual
  • Calibration Certificate
  • Durable Carrying Case
