Teseq (Schaffner) INA 415 Remote Triggering Unit for Teseq NSG 435 ESD Gun

    Description

    A remote triggering unit can be connected to operate the NSG 435 inside a Faraday cage with external pulse triggering or for test pulse triggering in synchronism with other conditions. The optical input for remote triggering is insensitive to external light sources.

    Teseq (Schaffner) INA 415 Remote Triggering Unit for Teseq / Schaffner NSG 435 ESD Gun

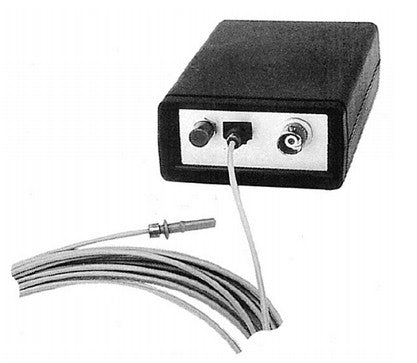

    The normal remote trigger unit consists of a «triggerbox» and 5 m (197 “) of optical cable. The remote trigger works in parallel with the «trigger-button» on the NSG 435. Pulse triggering, or the on/off switching in the case of repetitive discharges, can be effected by a push-button or an electrical signal applied to the triggerbox.

    The electrical signal at the BNC connector must fulfill the following conditions:

    • On: V = 2.4...10 V, I >2 mA, t >10 ms
    • Off: V <0.8 V
    • Repetition rate: <5 Hz

    The remote trigger is powered by a conventional 9 volt battery. The current consumption is so low that a battery switch has been dispensed with. If NSG 435 provided with two optical connectors connect the optical cable to the blue terminal.

    It is recommended to remove the battery if the unit is not going to be used for a long time.

    Product form

    Request Lead Time  In Stock
    Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

    Request Lead Time
    Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

    International
    Depending on where you’re located, we offer next day delivery. Check your status on this link

    $0.00 + Shipping

    Order by 3 PM and Ship ESD Guns and Equipment Same Day

      Ask & Learn

      Previous answers and questions posted below

      Learn by asking questions, practicing, and getting guidance

      Ask Now

      Description

      A remote triggering unit can be connected to operate the NSG 435 inside a Faraday cage with external pulse triggering or for test pulse triggering in synchronism with other conditions. The optical input for remote triggering is insensitive to external light sources.

      Teseq (Schaffner) INA 415 Remote Triggering Unit for Teseq / Schaffner NSG 435 ESD Gun

      The normal remote trigger unit consists of a «triggerbox» and 5 m (197 “) of optical cable. The remote trigger works in parallel with the «trigger-button» on the NSG 435. Pulse triggering, or the on/off switching in the case of repetitive discharges, can be effected by a push-button or an electrical signal applied to the triggerbox.

      The electrical signal at the BNC connector must fulfill the following conditions:

      • On: V = 2.4...10 V, I >2 mA, t >10 ms
      • Off: V <0.8 V
      • Repetition rate: <5 Hz

      The remote trigger is powered by a conventional 9 volt battery. The current consumption is so low that a battery switch has been dispensed with. If NSG 435 provided with two optical connectors connect the optical cable to the blue terminal.

      It is recommended to remove the battery if the unit is not going to be used for a long time.
