3ctest EDS 20H Hand-held 20kV Electrostatic Discharge ESD Simulator

Description

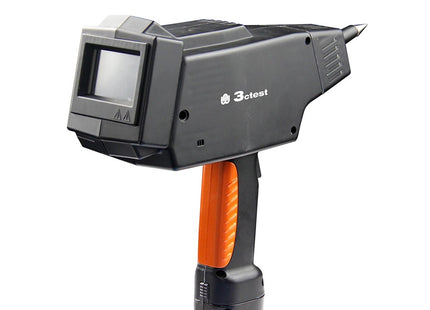

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites.

3ctest EDS20H Includes:

  • 20kV ESD Generator
  • AC Power Adapter for continuous testing
  • QTY 2 Batteries
  • Battery Charger
  • Air Discharge Tip
  • Contact Discharge Tip
  • 150pF/330 Ohm R/C Network
  • Grounding Cable
  • HV Alligator Clip
  • Ruggedized Carrying Case with Shoulder Strap
  • Traceable Calibration Certificate
  • User Manual
  • 10% off Calibration Service for Life

3ctest EDS20H Features:

  • Air- and Contact- Discharge: 1000-20,000V±5%
  • Rise time: 0.6-1ns
  • RC module: 150pF/330Ω
  • Automatic identification of discharge module
  • Voltage hold time: >5s
  • As per: IEC61000-4-2, GB/T17626.2

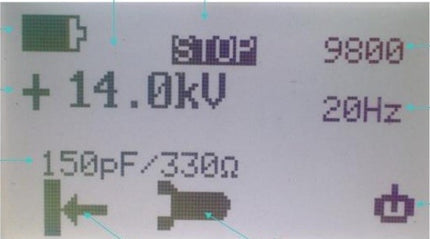

  • LCD Touchscreen
  • Automatic Polarity Switching
  • Temperature & Humidity Monitoring
  • Battery or mains operation with long battery life

Read more

3ctest EDS 20H Hand-held 20kV Electrostatic Discharge ESD Simulator

Product form

In Stock  In Stock
Monday to friday we offer next day delivery if the product is in stock and exceptions on holidays.

Request Lead Time
Equipment comes and goes everyday, we aren't automated for this website, contact us for status.

International
Depending on where you’re located, we offer next day delivery. Check your status on this link

$476.00

Download PDF
      Accessory Kit

    • 20kV ESD Generator
    • AC Power Adapter for continuous testing
    • QTY 2 Batteries
    • Battery Charger
    • Air Discharge Tip
    • Contact Discharge Tip
    • 150pF/330 Ohm R/C Network
    • Grounding Cable
    • HV Alligator Clip
    • Ruggedized Carrying Case with Shoulder Strap
    • Traceable Calibration Certificate
    • User Manual
    • 10% off Calibration Service for Life

      Features

    • Air- and Contact- Discharge: 1000-20,000V±5%
    • Rise time: 0.6-1ns
    • RC module: 150pF/330Ω
    • Automatic identification of discharge module
    • Voltage hold time: >5s
    • As per: IEC61000-4-2, GB/T17626.2
    • LCD Touchscreen
    • Automatic Polarity Switching
    • Temperature & Humidity Monitoring
    • Battery or mains operation with long battery life
