CST2 4 GHz, 2 Ohm ESD Target Current Sensing Transducer

New

  • Rental ESD Targets with ISO 17025 Accredited Calibration Available
  • Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and most every other ESD test standard
  • Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load)
  • Wideband up to 4GHz
  • 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V)
  • Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV

More details

$2,950.00 + Shipping

  • New
  • Rental - 1 Month

In Stock

Request Quote/More Info

Download

Data sheet

Variation of Insertion LossUnder 0.5 dB up to 1 GHz
Input/Shunt Resistance2.08 Ω ±1% (2.00 Ohm when match with 50 Ohm load)
Pulse AmplitudeUp to 30kV
BandwidthDC - 4 GHz

More info

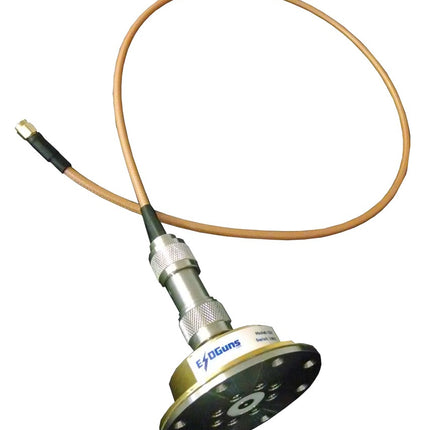

The ESD Guns CST2 ESD Target Current Sensing Transducer is a cost effective solution that allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2 compliance standard up to 4GHz.

ESD Guns CST2 Features:

  • Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and most every other ESD test standard
  • Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load)
  • Wideband up to 4GHz
    • < ± 0.5 dB up to 1GHz
    • < ± 1.2 dB up to 4GHz
  • 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V)
  • Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV

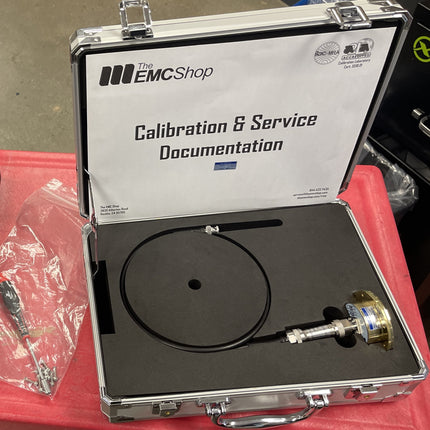

ESD Guns CST2 Includes:

  • CST2 2 Ohm ESD Current Target
  • 20dB or 30dB Precision Attenuator
  • RG400 Coaxial Cable N to SMA
  • SMA to BNC Adapter
  • Traceable Calibration Certificate
  • User Manual
  • Hardware and Nut Driver
  • Ruggedized Carrying Case

Accessories

8 other products in the same category:
