Rental - ISO 10605 Automotive RC Module Package for Teseq NSG 438
Automotive Package includes: INA 4381: 150 pF /2000 Ohms INA 4382: 330pF / 2000 Ohms INA 4553: 330 pF / 330 Ohms 150pF/330Ohm Standard Network Supplied with Every ESD Gun Calibrated with Teseq NSG 438 2 Days Free Transit - 30 Day Billing Cycle
$267.00 - $467.00
-
Teseq INA 4559 Discharge Network 500 pF - 5 kOhm per Stanag 4239
The Teseq (Schaffner) INA 4559 Discharge Network 500 pF / 5 kOhm per Stanag 4239 is compatible with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 500 pF Resistance: 5 kOhm Compatible with Teseq NSG 437 and NSG 438 Models Test Standards Met: Stanag 4239
$0.00 - $90.00
-
Teseq INA4382 ISO 10605 Discharge RC Network for NSG 437-NSG 438 - 330pF-2kOhm
The Teseq INA 4382 automotive discharge network is compatible only with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 330 pF Resistance: 2 kΩ Test Standards Met: ISO 10605 (2001), (2008) SAEJ1113-13
$0.00
-
Teseq INA 4555 Discharge Network 500 pF - 500 Ohm per MIL-STD-464, Stanag 4239
The Teseq (Schaffner) INA 4555 Discharge Network 500 pF / 500 Ohm per MIL-STD-464, Stanag 4239 is compatible with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 500 pF Resistance: 500 Ohm Compatible with Teseq NSG 437 and NSG 438 Models Test Standards Met: MIL-STD-464 Stanag 4239
$0.00
-
Teseq INA 417B Optical link cable to PC for NSG 437-438 ESD Gun
Run your ESD Tests from a PC For use with Teseq NSG 435 and Teseq NSG 438
$1,795.00
-
Teseq INA4380 150pF-330Ω Discharge Network per IEC 61000-4-2
The Teseq INA 4380 automotive discharge network is compatible only with the Teseq NSG 438 ESD Simulator Gun. Specifications: Capacitance: 150pF Resistance: 330Ω Test Standards Met: IEC 61000-4-2 (2008) ISO 10605 (2001), (2008)
$1,175.00
-
Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification
Calibration procedures on ESD generators call for high class test equipment and a carefully configured test rig. All the elements incorporated within the measurement chain must be matched to one another before highly accurate measurements with minimal uncertainties can be contemplated. Faster oscilloscopes enable more complete measurements and analyses of the fast ESD pulses but, of course, the rest of the components in the measurement chain must be up to the necessary standard and exhibit the appropriate frequency response. Therefore the Teseq MD 103 ESD Pulse Calibration set offers a complete measuring path from the target to the attenuator up to the high quality coax cable. The whole path has to be left together and should not be disassembled into parts, as the whole coupling path is calibrated in one piece. An important component in this chain is the measurement target. Through a collaborative effort with the Swiss Federal Institute of Technology, a new type of construction has been developed featuring a distortion-free, f at frequency characteristic up to at least 6 GHz. Standardization committees work on the pulse definitions of ESD generators to be specified more accurately and hence to ensure greater reproducibility during test trials. Simultaneously the description of the calibration test rig configuration and the measurement conditions have been newly and more precisely specified. The newest recommendations are written in the form of a draft standard that has been submitted to the ANSI as well as the IEC. Results from extensive round robin investigations confirm the feasibility and usefulness of tougher calibration requirements. The draft standard specifies the overall variation of the insertion loss of the whole measurement chain including cabling and any additional attenuators as follows: ±0.3 dB up to 1 GHz ±1 dB between 1 and 4 GHz As a result, the S21 parameter (insertion loss) of a target becomes a decisive factor. The classical measurement shunt can no longer satisfy these increased demands. The MD 103 target fulfils these specifications comfortably. The Teseq MD 103 is manufactured with the highest mechanical and electrical precision and therefore very narrow tolerances are assured. All the important elements are gold plated. The target is supplied ready for mounting in a screening wall. The Teseq MD 103 ESD Pulse Calibration Set for ESD Waveshape Verification is a measurement device for calibration laboratories and specialists, who work right at the cutting edge of the latest technological know-how. The set will be delivered as a complete chain, consisting of target, attenuator, cable and a ISO 17025 calibration certificate including all relevant calibration data and graphs. A calibration adapter is also supplied with each target as standard. Thanks to the excellent frequency characteristic and the accurately determined parameters this target cannot negatively influence the uncertainty budget of the measurement chain as a whole. Teseq MD 103 Includes: ESD target 20 dB attenuator High precision coax cable Solid case with spare place for INA 103 Special screw tool Manual Calibration certificate conform to ISO 17025 OPTIONAL: Teseq INA 103 calibration measuring adapter with N-connector
$940.00
-
Teseq INA 4413x Remote Discharge Tip for Explosive, Airbag & Special ESD Applications
Separate the control and the discharge module for special ESD applications including explosives, ammunitions and airbags. For applications where ESD pistol needs to stay away from EUT. Consists in Banana tip, HV extension cord of 1.5 meter, ended with resistor unit and set of air and contact test finger.
$200.00 - $1,800.00
-
Teseq (Schaffner) INA 4415 Flexible Test Tip Set for NSG 437-NSG 438
Flexible tip set. Where the application makes access of EUT discharge point difficult. Approx. 30 cm flexible extension adapter tips. Set of 2 tips, for air discharge and contact discharge mode. The Teseq (Schaffner) INA 4415 flexible test tip set was developed specifically for testing in difficult to reach places while maintaining discharge pulse shape integrity. The set includes a pointed test tip for working in contact discharge mode and a test finger with an IEC cone shape for air discharge testing.These highly flexible tips allow the user to keep the operating and display panel of the ESD simulator in ideal viewing position at all times during the test. All of the ESD simulator’s functions are available with the tip installed. Measurements taken on an IEC or ISO compliant calibration test system reveal that, even with the additional length, the pulse data obtained for contact discharges are very similar to those achieved with standard tips. These tips may also be used with any other NSG 438 discharge network. Teseq (Schaffner) INA 4415 Features: Maintain discharge pulse shape integrity in difficult to reach places Set of two 30 cm flexible extension adapter tips For use with Teseq NSG 437 or NSG 438
$0.00
-
HBM-MM RC Network Package for Teseq NSG 438 ESD Simulator
Looking to test and debug your product to human body and machine model tests? Rent or buy the HBM/MM RC Network Package for the Teseq NSG 438 ESD Simulator Gun. Package Includes: INA 4561 per Mil-STD 883: 100pF/1500Ohms INA 4569 200pF/0Ohms
$450.00
-

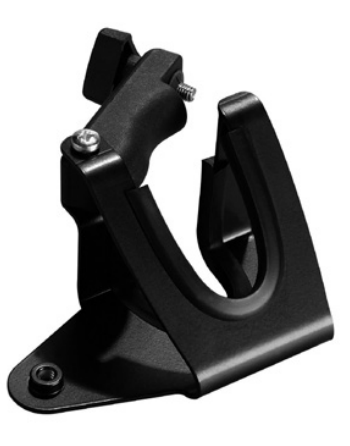

Teseq INA 4421 Tripod support for NSG 437, 438 ESD Pistols
Tripod support for Teseq NSG 437 and Teseq NSG 438 pistols. *Tripod not included
$0.00
-
Schaffner NSG 438 30kV ESD Gun - Used
ESDGuns.com is upgrading it's rental fleet to the EM Test ESD NX30 30kV ESD simulator system with a discharge removal feature for ungrounded DUT. Purchase a used Schaffner NSG 438 ESD gun at a great price while they last. Schaffner NSG 438 Overview: The Schaffner NSG 438 ESD gun comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 438 can meet any of today’s automotive manufacturers’ standards in addition to these common compliance standards: IEC/EN 61000-4-2 ISO 10605 EN 61000-6-1 EN 61000-6-2 RTCA/DO-160 Section 25 Mil-STD-461G CS118 (March 2015 Draft) ITU-T K2 The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.The touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe. Included with a Schaffner NSG 438 ESD Gun: Carrying case with: Discharge pistol Cradle for discharge pistol High voltage base unit with built-in battery pack, mains adapter and battery charging unit (100 to 250 VAC) INA4380 Discharge network 150 pF/330 Ω for IEC 61000-4-2 Air discharge tip Contact discharge tip Grounding cable User manual (CD or Hardcopy) Teseq NSG 438 ESD Simulator Rentals
$14,500.00
