Calibration Setup Accessories
-

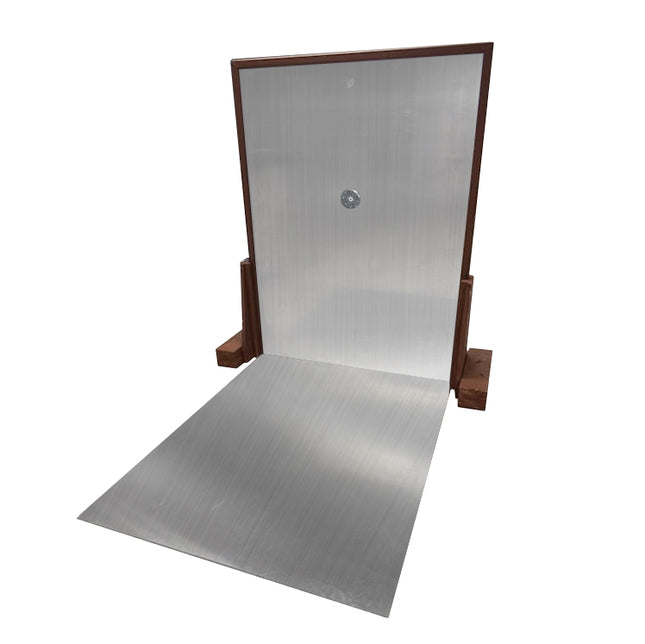

ESDGuns.com VGP Mobile Vertical Ground Plane Setup for ESD Current Target
Not compliant to edition 3, contact us for retrofit guidance, it still can be used with a tripod to get data pretty close to the fully compliant setup. Mount your ESD current target in a high quality, mobile vertical ground plane. The VGP Mobile has locking wheels allowing for easy mobility and placement during waveform verification of ESD generators.
$1,975.00
-
ESDGuns.com CST-ADAP Target Adapter Line for ESD Current Target Insertion Loss Measurement & Calibration
Ideal for use with ESD Guns CST2 Current Target Suitable for use with any ESD calibration target Designed per IEC 61000-4-2 and ISO 10605 Insertion Loss: ≤ 0.3 dB up to 4 GHz Reflection: < -30 dB up to 1 GHz, < -20 dB up to 4 GHz N-Type Connector Standard
$0.00
-
ESDGuns.com Mounting Board for Load Resistor - Coaxial Measurement Target
The board to fix the load resistor for measuring the discharge current waveform defined in IEC61000-4-2 Standard.
$155.00 - $930.00
-
ESDGuns.com PRP Portable Reference Plane for Coaxial Current Target
17" x 13" 4 Pounds Suitable for precompliance ESD generator calibration
$0.00
-

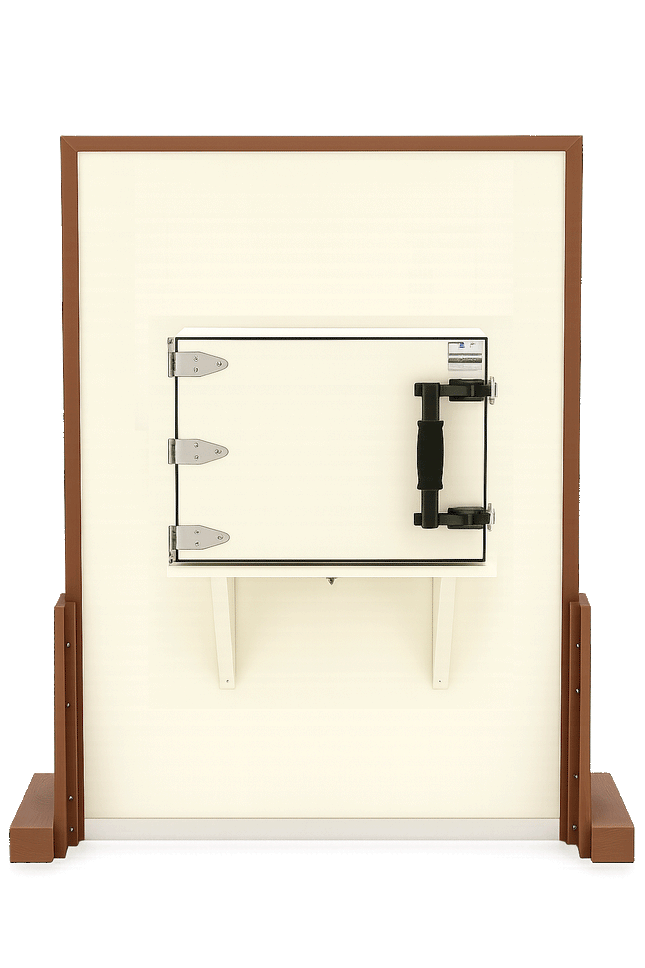

ESDGuns.com ESD Generator Current Measurement Setup
Pictured is the first build to comply with edition 3 of IEC 61000-4-2, released in 2025. With customer feedback, it will likely evolve and may look different. Ground cable connection is about complete but not pictured. Order just the ground plane and stand with a pre-drilled hole for the current target, add a shelf, add a shelf with ferrite and absorber, or add an enclosure. Contact us with questions. We will offer retrofit guidance and materials if you ordered a VGP from us in the past two years, it still can be used with a tripod to get data pretty close to the fully compliant setup.
$3,250.00 - $9,850.00
-
ESDGuns.com Mobile Stand with Locking Wheels for ESD Target Ground Reference Plane
Mobile Stand with Locking Wheels for ESD Target Ground Reference Plane manufactured by ESD Guns gives your ESD waveform verification/generator calibration setup a compact and clean look. Locking wheels make it easy to install or relocate your setup. Using the required 4' by 4' ground reference plane mentioned in ESD compliance standards IEC/EN 61000-4-2, ISO 10605 and many more, the connection of your ESD target will sit approximately 3 feet off the ground. Slightly higher than most standard test benches and allowing for close proximity connection to your oscilloscope. Features: Industrial strength capable of holding 5/8" thick ground reference plane Ideal height for clearance of ESD target on most work benches Locking wheels to move and mount in place Compact shipping and easy assembly
$795.00
-
$0.00
