Haefely ESD Gun - PESD 3010 Automotive Package

Haefely PESD 3010 Electrostatic Discharge (ESD) Simulator / Generator Gun View larger

Used

  • Fresh Traceable Calibration w/ Data
  • Industry Best 100 Day Warranty
  • 10% off Calibration Service for Life

More details

Request Quote

  • Used / Refurbished

1 System In Stock

Request Quote/More Info

Data sheet

Air Discharge Voltage1 – 30kV
Contact Discharge Voltage1 – 30kV
Voltage Resolution100 volt steps
Pulse networks150 pF / 330 Ohm
PolarityPositive & Negative
Operating modesSingle & Continuous
Discharge RepetitionSingle/0.1/0.2/1/2/5/10/20 Hz
Discharge Counter1 - 9999
Standards Met IEC/EN 61000-4-2;  ISO/TR 10605 for Automotive Testing;  MIL 464 system requirements;  MIL 331B Fuse & Fuse components;  MIL 1542B space system facilities
DimensionsGun: 10 x 21 x 29 cm; Controller : 17 x 10 x 28 cm
WeightGun: 1.5 kg; Controller: 1.5 kg

More info

The Haefely ESD Gun - PESD 3010 automotive package is still a viable solution, meeting the current ISO 10605 test standard. ESDguns.com, a division of The EMC Shop, has contacts with original developers of this ESD simulator and can service as well as replace discharge modules at a reasonable price. The current model, Haefely ONYX 30, has to be developed with specific automotive networks making it a higher risk acquisition in the event a discharge module fails.

Haefely ESD Gun - PESD 3010 Description:

Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible.

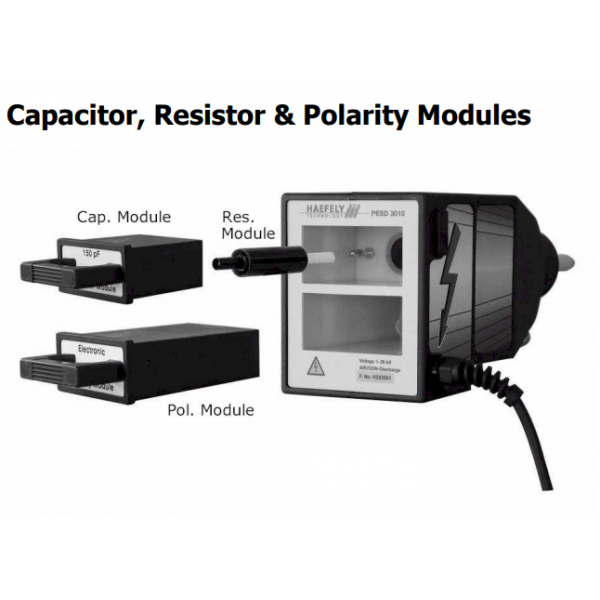

There are many standards which require discharge component (Resistor & Capacitor) values other than those described in the IEC/EN 61000-4-2 standard. With PESD 3010 it is possible to meet these requirements due to the changeable R&C modules.
The Haefely PESD 3010 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 3010 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results.
PESD 3010 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional push buttons for easy and convenient setting of all test parameters.
For long running tests, a screw socket on the bottom enables to mount the gun on a standard tripod.

Accessory Kit for Haefely ESD Gun - PESD 3010:

  • Test tip air discharge
  • Test tip contact discharge
  • Base Station
  • Ground cable
  • R/C module 150 pF/330 Ω according to IEC 61000-4-2
  • R/C modules for automotive combinations 150 pF/330 pF and 330 Ohm/2000 Ohm
  • User Manual
  • Calibration certificate
