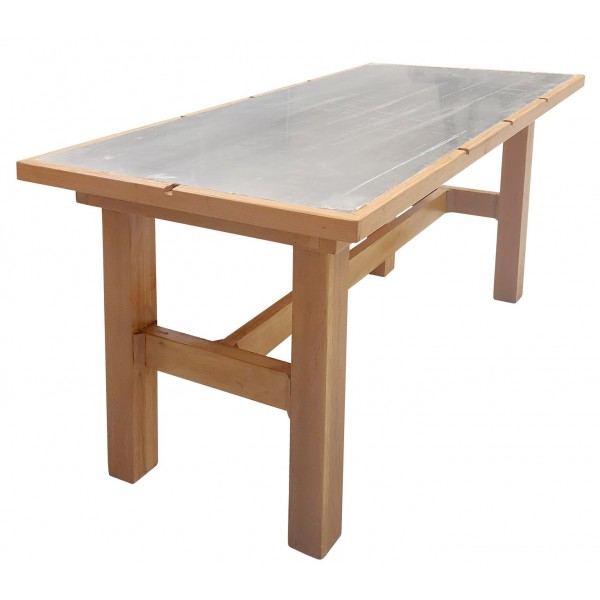

ESD Test Table/Bench with Coupling Planes and Grounding Cables

ESDGuns.com will provide you a ready to go ESD test table/bench allowing you to bring your ESD compliance testing in house. The ESDGuns.com Portable ESD Test Environment (PETE) is ideal for conducting direct and indirect application of discharges to the EUT, matching the type of conformance tests performed in compliance laboratories for table-top equipment. The PETE test setup is the most economical solution on the market. Using certified heat treated wood, the PETE is ready for shipment to most countries around the world.

ESDGuns.com PETE is a uniquely designed test setup for ESD immunity testing. Replicating the sophisticated tables found in certifications laboratories, the PETE is a high quality, time efficient and economic solution to begin pre-compliance ESD testing, troubleshooting, debugging and evaluation. The Horizontal and Vertical Coupling planes are easily accessible with grooves in ideal locations to maintain perpendicular placement of the discharge electrode. The setup includes the high quality voltage bleeding cables rated to 40,000 volts with pre-installed terminals on the planes for a quick and solid connection.

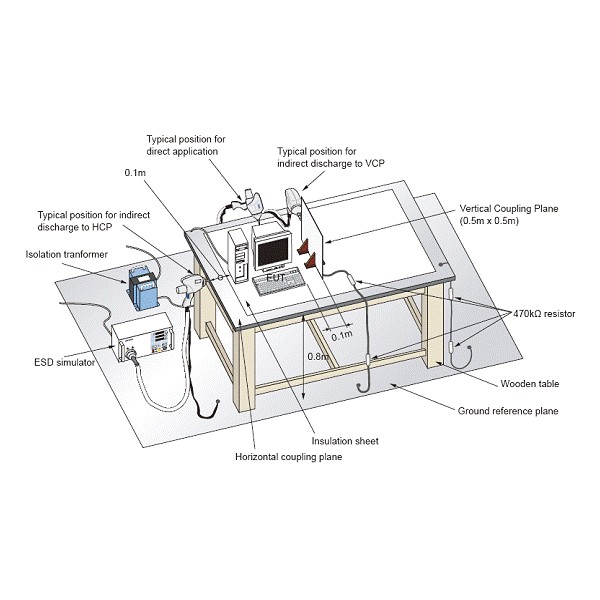

Set up for IEC electrostatic discharge immunity test

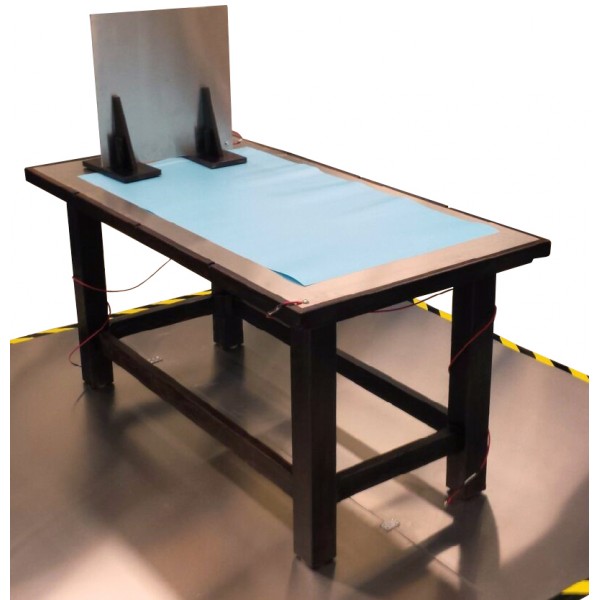

Updated Ground Reference Plane
