Haefely ONYX 16 kV ESD Generator Gun

SKU:

: In stock

Regular price $595.00

  • Rental Package Includes
    • Air and Contact Discharge Tips
    • Output Capability to 16kV
    • QTY 2 Batteries
    • User friendly touchscreen
    • IEC levels pre-programmed
    • 150pF/330Ohm Discharge Network per IEC 61000-4-2

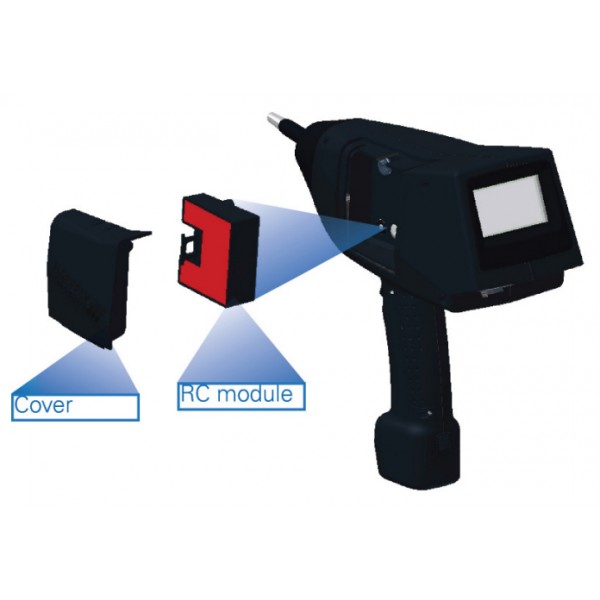

    • Easily interchangeable R/C networks available

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

The Haefely ONYX 16 kV electrostatic discharge simulator is the most ergonomic ESD generator gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX 16 kV in all types of test sites.

The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others.

The Haefely ONYX 16 kV ESD generator gun also features a unique self test which verifies all of the main components of the unit are working correctly.This ensures that accurate and reliable tests are performed every time the gun is used.

Haefely ONYX 16 kV Features:

  • Flexibility – enables users to meet many different test specifications with maximum cost effectiveness.
  • Quick and simple – one touch operation and simple on screen menu structure.
  • Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit.
  • Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package.

Accessory Kit for Haefely ONYX 16 kV:

  1. Test tip air discharge
  2. Test tip contact discharge
  3. 2 rechargeable battery packs
  4. Ground cable
  5. Battery charger unit includes mains adaptor set
  6. R/C module 150 pF/330 Ω according to IEC 61000-4-2
  7. Quick start guide
  8. Manual on CD
  9. Calibration certificate
  10. Rugged Carrying Case

    Pulse Amplitude
    Polarity Positive & Negative
    Operating Modes Single & Continuous
    Max Output Voltage Positive & Negative
    Length 8
    Width 20
    Weight 1.7 kg (3.75 Lb's)
    Height 20
    Input/Shunt Resistance
    Holding Time
    Display Touch screen, multilingual interface, built-in LED light and temperature & humidity display
    Discharge Repetition Single/0.1/0.2/0.5/1/2/5/10/20 Hz
    Discharge Detection Air Discharge
    Discharge Counter 1 to 9,999
    Dimensions 290 x 270 x 110 mm
    Contact Discharge Voltage 1 kV to 16 kV
    Charging Voltage Measurement
    Battery Life At least 16 Hours
    Bandwidth
    Discharge Tips Test tip air discharge & test tip contact discharge
    Air Discharge Voltage 1 kV to 16 kV
    Voltage Resolution 100 Volt Steps
    Variation of Insertion Loss
    Standards Met IEC 61000-4-2, ANSI C63.16, RTCA/DO-160 (Additional R/C networks for more standards)
    Radiation Rating IIIII
    Pulse Networks 150 pF / 330 Ohm
