Last ESD Target in stock with ISO...
Teseq NSG 438 ESD Simulator Rentals...
Programmable discharge voltage 200 V to 16.5 kV Stabilized charging...
Ideal for voltage bleeding to Ground Plane during Indirect ESD Immunity...
Rentals Ship Immediately Purchase Options See: Used Keytek Minizap ESD...
Suitable for EN/IEC 61000-4-2 ESD immunity compliance testing...
Rental Package Includes Air and Contact Discharge Tips Output Capability...
ESD Guns can refurbish your existing INA 405 battery pack. Expected...
Air- and contact-discharge to 30 kV Color touch panel control Advanced...
Flexibility – enables users to meet many different test specifications...
|Air Discharge Voltage||200 V to 30 kV|
|Contact Discharge Voltage||200 V to 30 kV|
|Voltage Resolution||100 Volts|
|Discharge tips||Ball and point as per IEC and specials, exchangeable by threaded cap|
|Pulse networks||Network 150 pF / 330 Ω as per IEC / EN 61000-4-2 and ISO 10605; Automotive Test Package: Optional ISO 10605 networks 330 pF / 330Ω, 150 pF / 2 kΩ and 330 pF / 2 kΩ|
|Charging voltage measurement||kV, accuracy better than ±5% (stabilized)|
|Discharge detection (air-discharge only)||Indicated by the kV symbol being displayed in inverse also acoustically in the ‘Single’ operating mode. Adjustable threshold level.|
|Holding time||At least 5 seconds (charging voltage +5%)|
|Charge resistor||50 MΩ|
|Polarity||Positive / negative / automatic change|
|Operating modes||Single / repetitive / random (time / pulse)|
|Display||LCD panel showing: charging voltage, breakdown event, polarity, air- / contact-discharge, counter / preselect counter content, network parameters, battery monitor|
|Discharge Repetition||0.5 / 1 / 5 / 10 / 20, 25 Hz (air); 0.5 / 1 / 5 / 10 H or 20 Hz (contact)|
|Discharge Counter||0 to 9999|
|Standards Met||IEC 61000-4-2, ISO 10605 and many other automotive compliance standard from|
|Weight||Disharge Pistol: 1.2 kg (2.6 lbs); Base Unit: 6.5 kg (14.3 lbs)|
|Max Output Voltage|

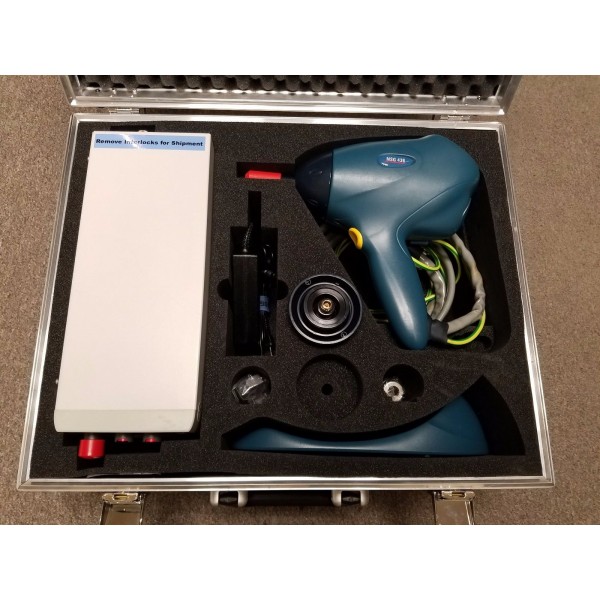

ESDGuns.com is upgrading it's rental fleet to the EM Test ESD NX30 30kV ESD simulator system with a discharge removal feature for ungrounded DUT. Purchase a used Schaffner NSG 438 ESD gun at a great price while they last.
The Schaffner NSG 438 ESD gun comprehensively fulfills virtually all international standard requirements. Based on over 60 optional discharge networks, the NSG 438 can meet any of today’s automotive manufacturers’ standards in addition to these common compliance standards:
The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.
The touch display and keypad for parameter input shows the precise functional and test data with user-selectable language for convenient and safe operation worldwide. The simulator contains variable threshold selection for accurate discharge detection. This detection feature can be switched off when testing EUT’s with non-conductive surfaces, such as plastic housings. Pre-programmed settings for IEC 61000-4-2 and ISO 10605 ensure that the simulator is automatically set up correctly and the appropriate discharge network is installed. The actual RC value is displayed at all times. Molded HV discharge networks in solid cases eliminate ionization and leakage current effects. Precisely tuned combinations of RC components guarantee wave shape parameters to be within tolerances. A unique activity log is included so that the types and numbers of ESD simulations can be easily scrolled through to check what has been tested and in what timeframe.
