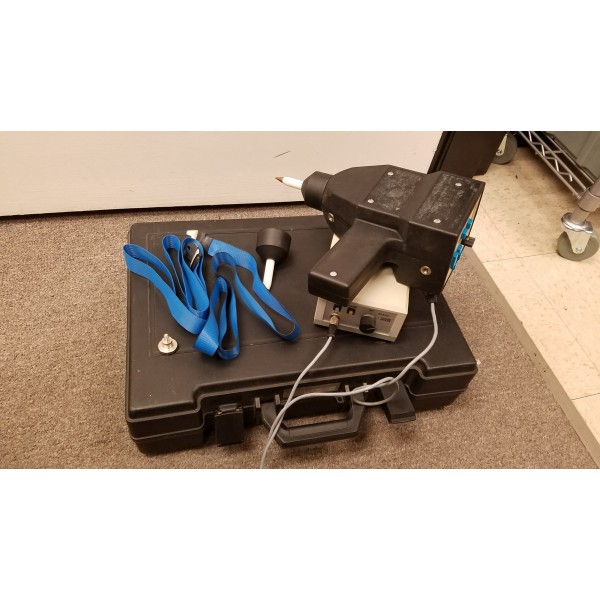

Haefely PESD 1600 Electrostatic Discharge Test System up to 16.5kV

Haefely PESD 1600 Electrostatic Discharge Test System up to 16.5kV View larger

Refurbished

  • Used Unit includes:
    • 100 Day Warranty
    • NIST Traceable Calibration w/ Data
    • Base Station for Charging or AC Operation
    • Air Discharge Tip
    • Contact Discharge Tip
    • Grounding Cable
    • User Manual
    • 10% off Calibration Service for Life
  • Try before you buy, Rent-to-Own and Leasing options available

More details

$6,900.00 + Shipping

Request Quote/More Info

Data sheet

Air Discharge Voltage0.2 – 16.5kV
Contact Discharge Voltage0.2 – 9kV
Voltage Resolution100 Volts
Discharge tipsTest tip air discharge
Pulse networks150 pF / 330 Ohm
PolarityPositive & Negative
Operating modesSingle & Continuous
DisplayInterface on Pistol and Base Station
Discharge RepetitionSingle, 1, 2, 5, 10 & 20 Hz
Discharge Counter1 to 9,999
Standards MetIEC 61000-4-2 (Additional R/C networks for more standards)
Dimensions10 x 21 x 20 cm (Gun); 11 x 7 x 20 cm (Charger)
Weight1.2 kg (Gun); 0.6 kg (Charger)

More info

The Haefely PESD 1600 Electrostatic Discharge (ESD) Simulator / Generator Gun has been replaced by the Haefely ONYX 16 kV ESD Test Generator. The Haefely PESD 1600 is still suitable for most ESD immunity test applications and can be rented or purchased at an economical price compared to current model 16 kV ESD simulators. Please note quantities are limited as parts are no longer available and units must be scrapped once functionality fails.

Haefely PESD 1600 Description:

Bringing dissimilar insulation materials together and then parting them creates electrostatic charges. The resultant electrostatic discharge (ESD) can cause failures in electronic circuits. There are two principal methods of discharge: Air discharge and contact discharge. Contact discharge is the preferred test method because test results are more reproducible.
The Haefely PESD 1600 features a unique NO CONTACT detection circuit. During contact discharge tests, PESD 1600 continuously monitors if ESD pulses are really discharged to the EUT (Equipment under Test). In case of no contact to the EUT, the operator receives a warning message in the LCD display. This prevents the user from potentially wrong test results.
The PESD 1600 has a highly ergonomic design. This includes a firm handle that insures safe and comfortable operation under any circumstances, and dedicated, large conventional push buttons for easy and convenient setting of all test parameters. For long running tests, a screw socket on the bottom enables the user to mount the gun on a standard tripod.

Overview of Refurbished Haefely PESD 1600:

  • PESD 1600 ESD Generator - New High Voltage Module
  • Air Discharge Tip
  • Contact Discharge Tip
  • Ground cable
  • Power Supply Unit
  • User Manual
  • Calibration certificate w/ Data
  • 10% off calibration service for life
