|Air Discharge Voltage||500V - 16,500V +/-5%|
|Contact Discharge Voltage||500V - 10,000V +/-5%|
|Voltage Resolution||100 Volt Steps|
|Discharge tips||Air Discharge and Contact Discharge|
|Pulse networks||150pF/330ohm discharge module with built-in contact discharge relay;|
|Holding time||More than 5 seconds|
|Operating modes||Single Mode, Continuous Discharge Mode, Remote Control via Software|
|Display||LCD graphic display; 128 x 64 pixels|
|Discharge Repetition||up to 20Hz (air) and 10Hz (contact)|
|Battery Life||More than 70,000 pulses @ 16.5kV; automatic power-off after 10 minutes if not operated LiFePo4 12.8V - 1000mAh|
|Standards Met||EN/IEC 61000-4-2, EN 61000-6-1/-6-2|
|Weight||870 gramms incl. battery|
ESDguns.com, a division of The EMC Shop, rotates inventory making used EM Test Dito units available that are one to five years old.

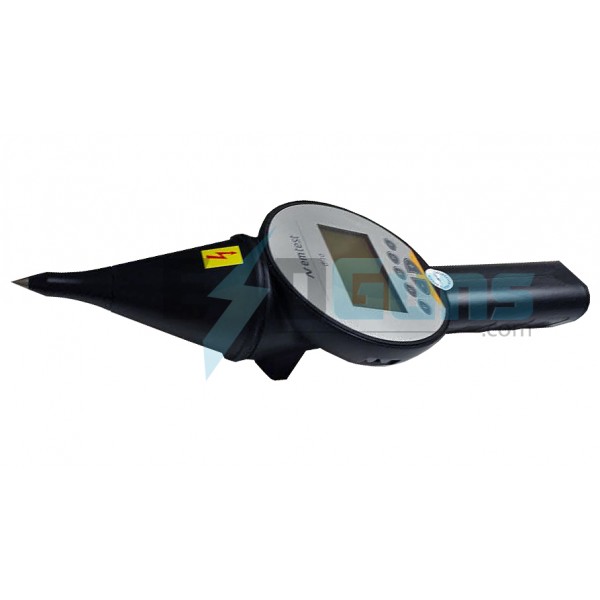

The EM Test Dito Handheld Battery Operated ESD Simulator is best designed for the different requirements for testing ESD. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menus lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.
The EM Test Dito's ergonomic design is recognized to be more user-friendly. There is no part of the EM Test Dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.
The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.
Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognized and the R/C configuration is shown in the display. You just can't use a wrong discharge network!
