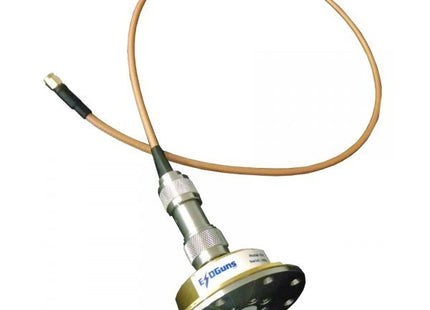

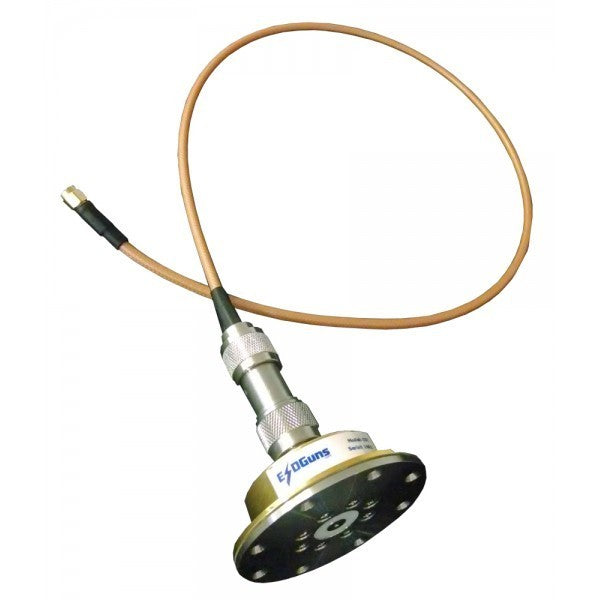

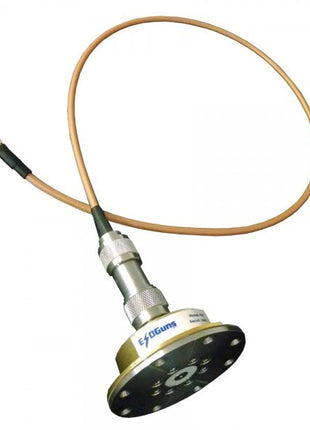

The ESDGunscom CST2 ESD Current Target is a discounted, cost effective solution with ISO 17025 calibration valid until August 2018. The CST2 ESD target allows the user to take measurements conforming to the requirements of the most recent version of the IEC 61000-4-2, MIL-STD-461G CS118 compliance standard up to 4GHz.
ESD Guns CST2 Features:
- Meets MIL-STD-461G CS118 as well as IEC 61000-4-2 and most every other ESD test standard
- Input Resistance 2.08 Ohm (±1%) (2.00 Ohm when match with 50 Ohm load)
- Wideband up to 4GHz
- < ± 0.5 dB up to 1GHz
- < ± 1.2 dB up to 4GHz
- 0.5A/V transfer impedance, ±1% (with a 20dB attenuator, 5A/V)
- Voltage Non-linearity <2% up to 20kV, < 5% up to ± 30kV
ESD Guns CST2 Includes:
- CST2 2 Ohm ESD Current Target
- 20dB or 30dB Precision Attenuator
- RG400 Coaxial Cable N to SMA
- SMA to BNC Adapter
- ISO 17025 Calibration Certificate
- User Manual
- Hardware and Nut Driver
