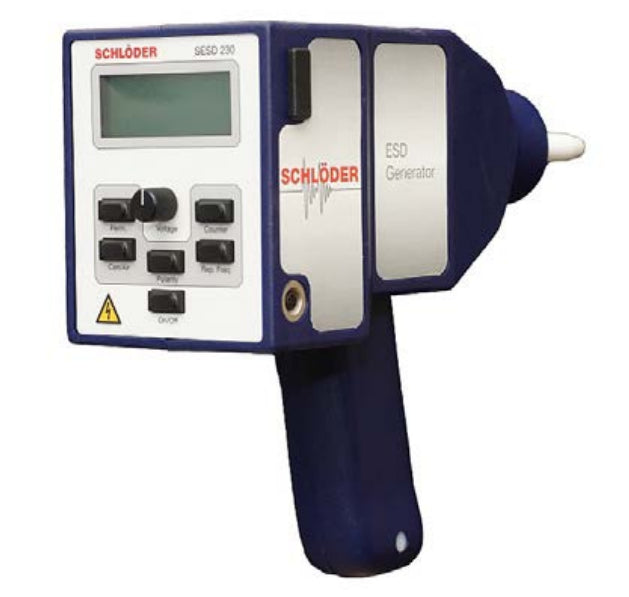

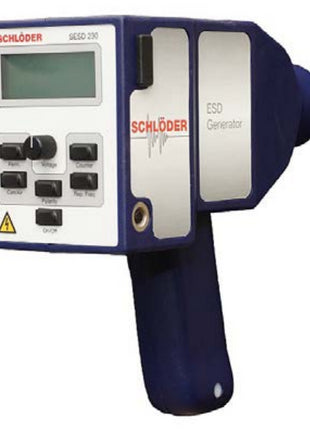

Schloder SESD 230 30kV Handheld Battery Operated ESD Simulator
Schloder SESD 230 30kV Handheld Battery Operated ESD Simulator

Schloder SESD 230 30kV Handheld Battery Operated ESD Simulator

SKU:

: In stock

$10,900.00

  • Lightweight and ergonomical
  • Pre-programmed Test Levels per IEC 61000-4-2 and more
  • Create custom test sequences
  • Built-in 150pF/330 Ohm R/C network
  • 0.5 kV to 30.0 kV, 100 Volt Steps

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

The Schloder test generator SESD 216 simulates electrostatic discharge as defined in the standard IEC / EN 61000-4-2. It is the most ergonomical and lightweight of all handheld, battery operated 30kV ESD simulators on the market. It's compact design and lightweight chassis makes it easy for users to handle during long sessions of testing, evaluation or debugging.

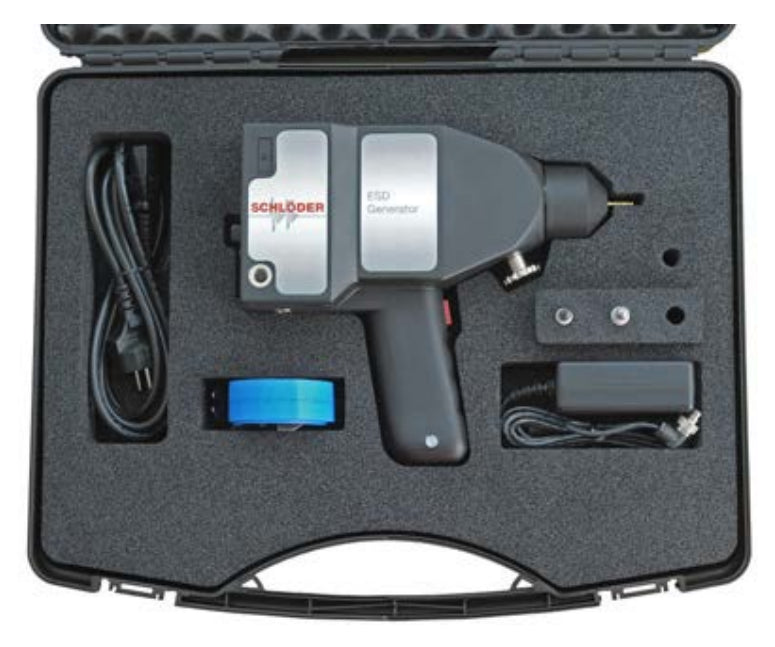

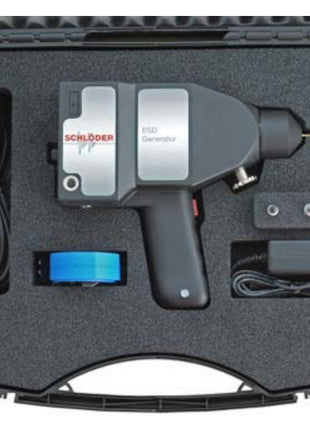

Schloder SESD 216 Includes:

  • 30kV ESD Simulator
  • Battery Charger (Also runs on AC during charge)
  • Air Discharge Test Tip
  • Contact Discharge Test Tip
  • Ground Cable
  • Carrying Case
  • User Manual
  • Calibration Certificate with Data and Waveforms
  • 10% off Calibration Service for Life

Pulse Amplitude
Polarity positive, negative or alternate
Operating Modes
Max Output Voltage positive, negative or alternate
Length 10
Width 20
Weight 3.2 Lbs
Height 20
Input/Shunt Resistance
Holding Time ≥ 5 sec
Display
Discharge Repetition Single, 0.1 Hz, 0.2 Hz, 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Discharge Detection Air Discharge
Discharge Counter 1-9999
Dimensions
Contact Discharge Voltage 0,5 kV to 30,0 kV
Charging Voltage Measurement
Battery Life
Bandwidth
Discharge Tips Air and Contact
Air Discharge Voltage 0,5 kV to 30,0 kV
Voltage Resolution 100 Volts
Variation of Insertion Loss
Standards Met IEC 61000-4-2, DO-160, MIL-STD-461G CS118 and more
Radiation Rating II
Pulse Networks 1550pF/330Ohm (built-in)
