3ctest EDS 20H 20kV Electrostatic Discharge ESD Simulator

3ctest EDS 20H Hand-held 20kV Electrostatic Discharge ESD Simulator

SKU:

Availability: In stock

Regular price $476.00

Air- and Contact- Discharge: 1000 Volts - 20kV ±5%
Rise time: 0.6-1ns
RC module: 150pF/330Ω
Automatic identification of discharge module
Voltage hold time: >5s
As per: IEC61000-4-2, GB/T17626.2
LCD Touchscreen
Automatic Polarity Switching
Temperature & Humidity Monitoring
Battery or mains operation with long battery life

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

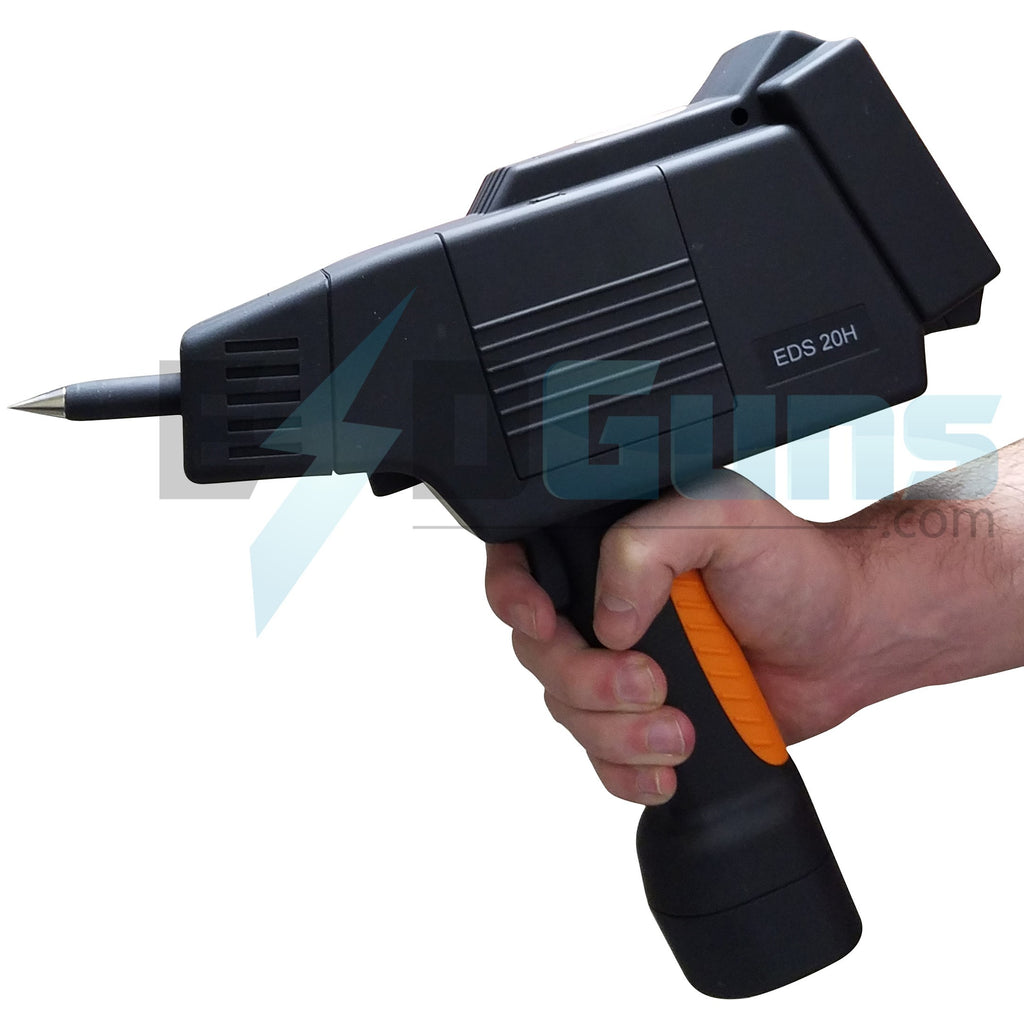

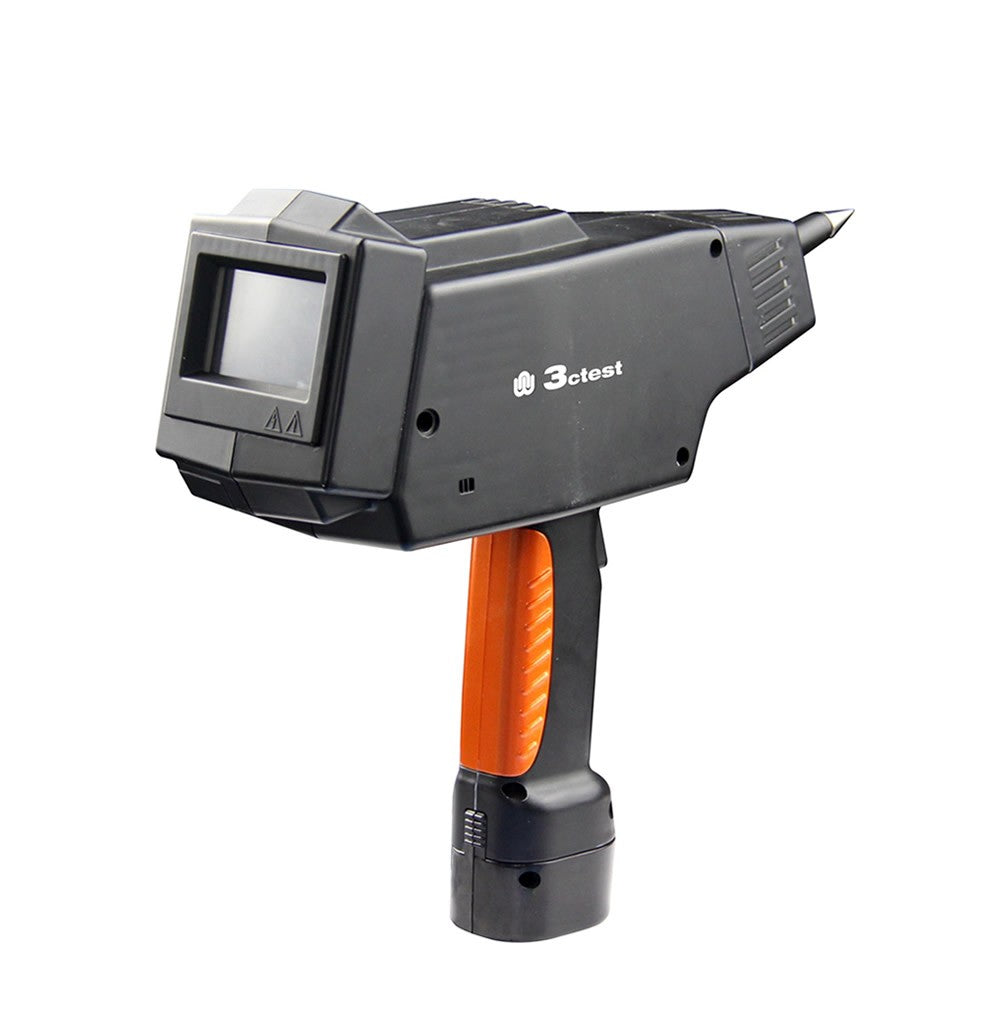

The 3ctest EDS20H is a state of the art electrostatic discharge (ESD) simulator for immunity and compliance testing from 1 kV to 18 kV. It is a self contained pistol housing the High voltage source, battery and RC networks in one lightweight assembly. The user friendly touchscreen, ergonomic design, modular R/C units, remote control software, built-in LED light and temperature and humidity display allows quick and trouble-free us in all types of test sites.

3ctest EDS20H Includes:

20kV ESD Generator
AC Power Adapter for continuous testing
QTY 2 Batteries
Battery Charger
Air Discharge Tip
Contact Discharge Tip
150pF/330 Ohm R/C Network
Grounding Cable
HV Alligator Clip
Ruggedized Carrying Case with Shoulder Strap
Traceable Calibration Certificate
User Manual
10% off Calibration Service for Life

3ctest EDS20H Features:

Air- and Contact- Discharge: 1000-20,000V±5%
Rise time: 0.6-1ns
RC module: 150pF/330Ω
Automatic identification of discharge module
Voltage hold time: >5s
As per: IEC61000-4-2, GB/T17626.2
LCD Touchscreen
Automatic Polarity Switching
Temperature & Humidity Monitoring
Battery or mains operation with long battery life

DOWNLOAD

Datasheet: 3ctest EDS 20H

Download (872.89k)

Manual: 3ctest EDS 20H

Download (1.98M)

Pulse Amplitude
Polarity	positive, negative, alternating
Operating Modes	Quickstart, manual, automatic, PC interface
Max Output Voltage	positive, negative, alternating
Length	10
Width	22
Weight	940 Grams with Battery Installed
Height	18
Input/Shunt Resistance
Holding Time	Greater than 5 seconds

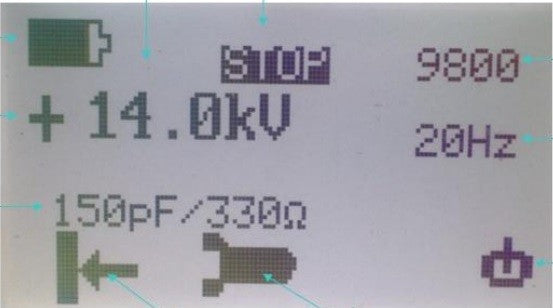

Display	LCD 128 x 64
Discharge Repetition	Single, 0.1 Hz - 20 Hz
Discharge Detection Air Discharge
Discharge Counter	1 - 9,999
Dimensions
Contact Discharge Voltage	1,000 Volts to 20,000 Volts ±5%
Charging Voltage Measurement	N/A
Battery Life	20 Hours running at 1 Hz and 18 kV
Bandwidth
Discharge Tips	Air and Contact
Air Discharge Voltage	1,000 Volts to 20,000 Volts ±5%
Voltage Resolution	100 Volts
Variation of Insertion Loss
Standards Met	IEC/EN 61326; IEC/EN 61000-6-1; IEC/EN 61000-6-2; IEC 61340-3-1; IEC 61000-4-2; IEC 61326; EN 61000-4-2; ISO 10605; ITU-TK.20; GB/T 17626.2
Radiation Rating	III
Pulse Networks	150 pF, 330 Ohm standard, additional networks available
