Keytek Series 2000 ESD Simulation Test System to 25kV

Keytek Series 2000 ESD Simulation Test System to 25kV - ESDGuns.com View larger

Used

  • Continuously selectable voltage from 0 to 25kV, positive and negative
  • Interchangeable discharge networks, current injection adapters & tips for ESD testing to multiple standards
  • Contact mode and air discharge testing including auxiliary adapters for air discharge generation & all five of its basic components
  • Single-shot or programmable repetitive operating modes
  • Hand-held or tripod-mounted

More details

$2,950.00 + Shipping

Request Quote/More Info

Download

More info

The KeyTek Series 2000 hand-held or tripod-mounted ESD simulation test system provides a combination of performance characteristics that enable users to test to various ESD standards including IEC, ANSI, SAE and MIL-STD. Interchangeable discharge networks, current injection adapters, and tips (bundled or stand-alone) all plug directly into the discharger’s barrel, and facilitate testing to a broad range of ESD test methodologies to help users achieve market and company-driven quality objectives, and regulatory standards.

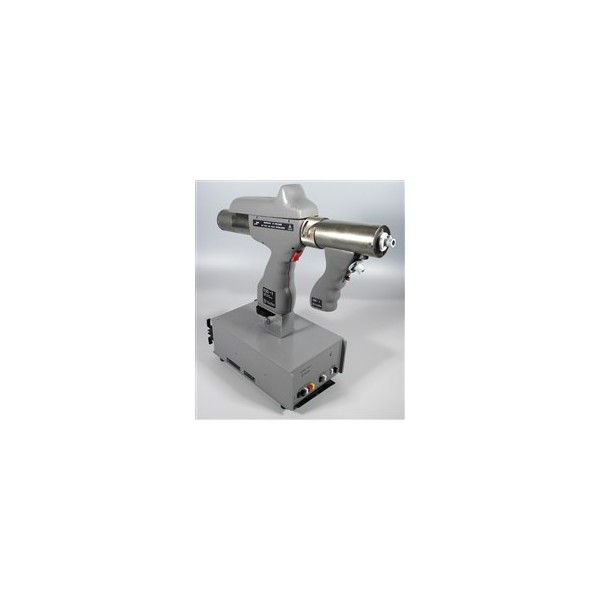

The basic system is comprised of two interconnected units: the ESD-1 Discharger (or gun) that may be either hand-held or tripod mounted, and its associated Power Supply/Control Unit PSC-1. The ESD-1 Discharger contains a basic handle, polarity switch, high voltage set knob, a Digital Stored Voltage Monitor (DVM), and an audible discharge monitor that informs user when a discharge has occurred. The Power Supply/Control Unit includes selectors for repetition rates, charge rate and burst/normal modes.

Keytek Series 2000 Features:

  • Continuously selectable voltage from 0 to 25kV, positive and negative
  • Interchangeable discharge networks, current injection adapters & tips for ESD testing to multiple standards
  • Contact mode and air discharge testing including auxiliary adapters for air discharge generation & all five of its basic components
  • Single-shot or programmable repetitive operating modes
  • Hand-held or tripod-mounted

Available Networks for Keytek Series 2000:

  • DN-10 Discharge Network: IEC 61000-4-2 human-body-model Discharge Network (150 pF/330 Ω).
  • DN-1 Discharge Network: IEC human-body-model Discharge Network (150 pF/150 Ω). **
  • DN-2 Discharge Network: NEMA Part DC33 and MIL STD 883E Discharge Network (100 pF/1500 Ω)
  • DN-3 Discharge Network: Upper/lower-body-model Discharge Network (700 pF/100K/150 pF/150 Ω)
  • DN-4 Discharge Network: Segmented-body-model Discharge Network (700 pF/100K/150 pF/150 Ω/20 pF-50 Ω)
  • DN-6 Discharge Network: Optimum basic human-body-model network: EIA Std, PN-1361 (Draft 6, 1985) Discharge Network (100 pF/500 Ω)

** DN-10 may be substituted directly for DN-1; IEC Contact Mode module, CIA-V (for use with DN-10) may be directly substituted for DN-6 and HT-10/DT-4.
